4K Live Streaming PTZ Video Conference IP Camera

4K Live Streaming PTZ Video Conference IP Camera

30x optical zoom
USB/SDI/HDMI/IP video output
Pan: 0-340° Tilt :0°~120°
RS-232, RS-485, IR remote control
1/3" HD Color CMOS 2.38 mega pixel
Superior quality with Full Glass Lens Material

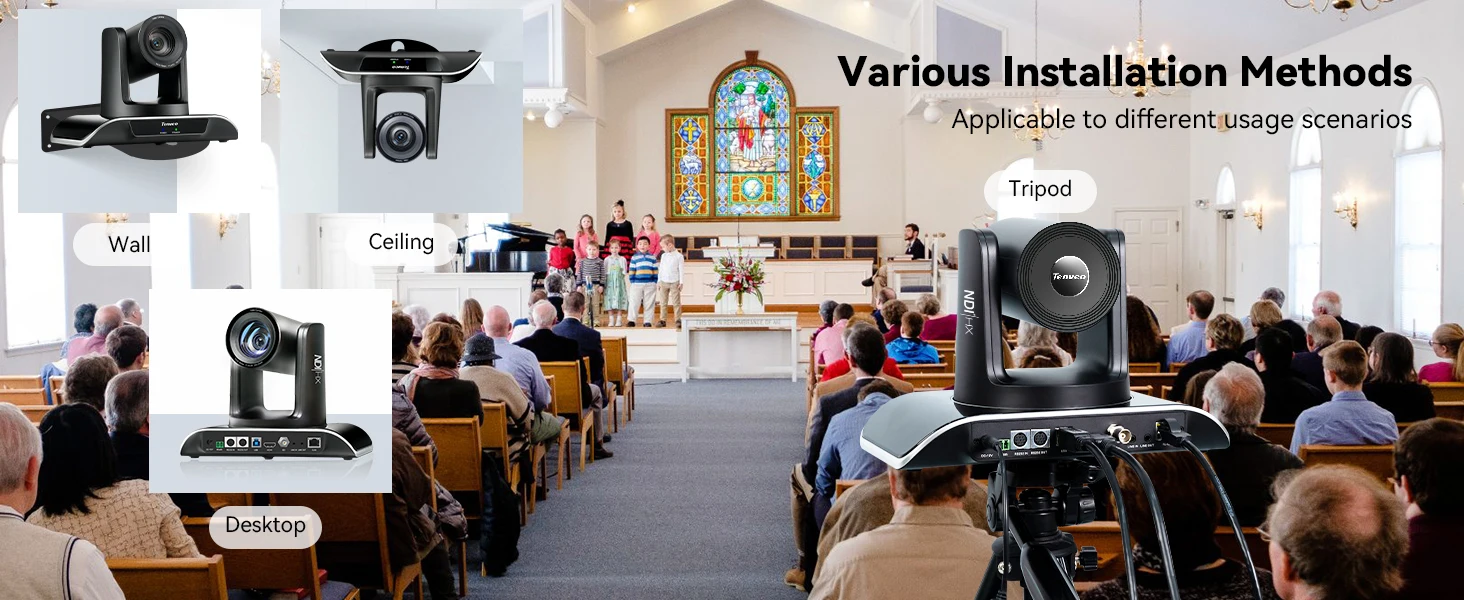

Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved 4k live streaming ptz video conference ip camera at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.



Product Description
4K Live Streaming PTZ Video Conference IP Camera

*30x optical zoom 4k camera
*1 /2.8 inch high quality, 8.29 MEGA PIXEL (16:9) CMOS sensor
*UHD 4K image quality
*2D and 3D NR for best video quality in different lighting conditions
* Multiple video outputs: USB/HDMI/3G-SDI/RJ45* H.264, H.265, MJPG, YUY2 video compression
* PTZ Movement (Pan:350°,Tilt: 180°)

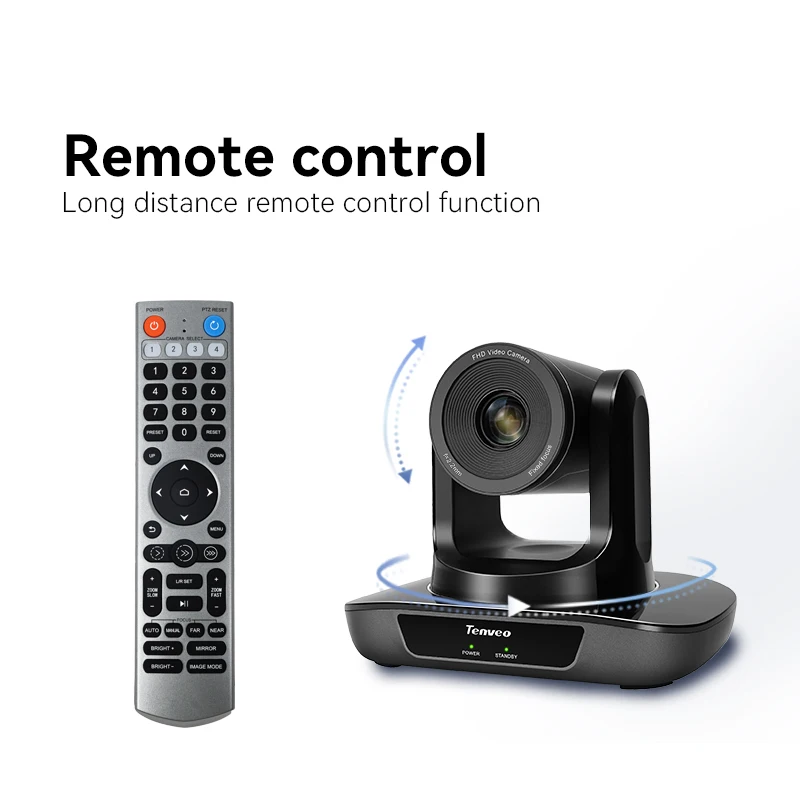

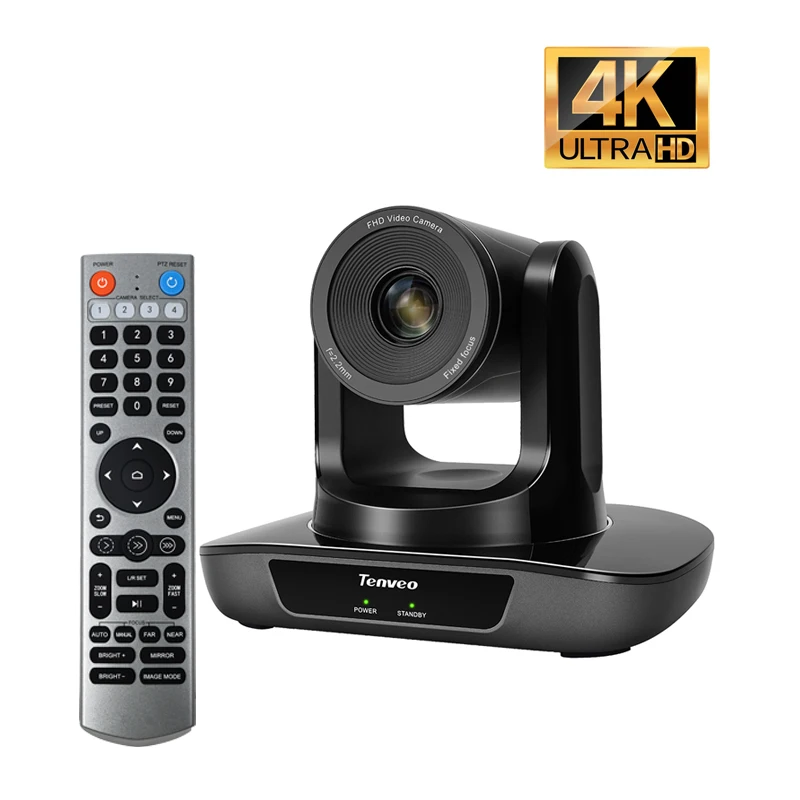

* Controlled by IR remote RS-232 RS485 IP
* POE Supported, NDI for Option.
* Support AI function
Multiple Interfaces

Equipped with 3G-SDI, HDMI, USB3.0, and RJ45 interfaces, this PTZ live streaming camera provides flexibility and versatility when it comes to connecting to different devices and platforms. PoE(802.3af) supported. Meanwhile, LINE IN and LINE OUT interfaces can be connected to audio devices, supporting simultaneous audio and video streaming(audio device is not included). This makes it compatible with a wide range of devices and platforms, allowing you to meet all your live streaming needs.The video conference keyboard is made of metal panel with frosted film upper shell, and aluminium die-casting lower shell, industrial-grade LCD screen, excellent display effect, fine and clear characters. high-end atmosphere, simple and beautiful appearance.



This 30x zoom camera with USB/HD-MI/SDI/RJ45 video outputs, embeds POE, zero-latency and perfect for online live streaming(RTMP/RTSP). Power over Ethernet makes it do not need a power adaptor, it will work by easily connecting via a LAN port.


This PTZ Camera can be controlled remotely to rotate 350°(±175°) horizontally and 180°(±90°) vertically in an accurate, smooth and silent way. Combined with 2D and 3D noise reduction for a clear picture eveb under low light. It is available to set up to 255 presets via RS232 and RS485 interfaces for professional control. The convenient way could quickly control the PTZ camera pan, tilt, zoom, and move to the preset position for close-up sequence.


The AI PTZ Camera with Auto-Tracking supports human shape tracking based on advanced AI algorithm. Through face recognition, it can accurately determine the location of people, realize automatic tracking and automatic frame selection. This makes it ideal for capturing live events, such as church services worship events, sporting events, live concerts, video production or large conferences.


Specifications
UHD630A-4K
Sensor
1/2.8''
Effective Pixels
8.29MP
Video Signals
4KP30,1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080I60, 1080I59.94, 1080I50, 720P60, 720P59.94, 720P50
Zoom
30x optical zoom
Lens
f=4.2mm ~ 50.4mm
Aperture
F1.8 ~ F2.8
Horizontal Angle
70.2° ~ 6.52°
Vertical Angle
42.6° ~ 3.76°
Diagonal Angle
77.5° ~ 7.53°
Digital Zoom
8X
Video Output
USB 3.0, HDMI, RJ45, SDI
Signal Standard
NTSC/PAL
Control Interface
RS232, RS485, USB, NET
Shutter
1/30s ~ 1/10000s
White Balance
Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation
Support
Digital Noise Reduction
2D&3D Digital Noise Reduction
Baud Rate
2400/4800/9600/19200/38400
Control Protocol
VISCA, Pelco-D,Pelco-P
USB Protocol
UVC 1.1
Minimal Illumination
0.5 Lux @ (F1.8, AGC ON)
SNR
≥50dB
Horizontal Rotation
350° (±175°) 0.1°/s~100°/s
Vertical Rotation
180° (±90°)0.1°/s~80°s
H & V Flip
Support
Image Freeze
Support
PoE
Support
Number of Preset
255
Preset Accuracy
0.1°
IPC Features
Video Encoding Format
H.264/H.265/MJPG
Video Stream
Main Stream, Sub Stream
Main Stream Resolution
1920x1080, 1280x720, 1024x576 , 940x540,etc.
Sub Stream Resolution
1280x720, 1024x576, 720x480, 720x408,etc.
Video Bit Rate
32Kbps ~ 102400Kbps
Bit Rate Type
Variable Rate, Fixed Rate
Frame Rate
50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression
AAC
Audio Bit Rate
96Kbps, 128Kbps, 256Kbps
Network Protocol
NDI |HX2,SRT,TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
Input/Output Interface
HD Output
1xHDMI
1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
LAN
1xRJ45:10M/100M Ethernet Interface,PoE(802.3af)
Audio Interface
1-ch: 3.5mm Audio Interface, Line In
1-ch: 3.5mm Audio Interface, Line Out
USB
1xUSB3.0: Type B female jack
Communication Interface
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack
JEITA type (DC IN 12V)
Generic Specification
Power Supply
DC 12V/2A
Power Consumption
12W
Work Temperature
0℃ to 40°C
Work Humidity
20%~80% RH
Store Temperature
-20°C to 60°C
Store Humidity
20%~90% RH
Product Size
247.1*152*169.6mm/285*217*197mm(before / after packing)
Product Weight
1.37kg/2.45kg (net / gross weight
