PTZ Camera UVS20A-4K 4K 20x Optical Zoom 8.29MP AI Auto Tracking and Auto Framing Wide View Angle PTZ Conference Camera
video
PTZ Camera UVS20A-4K 4K 20x Optical Zoom 8.29MP AI Auto Tracking and Auto Framing Wide View Angle PTZ Conference Camera

PTZ Camera UVS20A-4K 4K 20x Optical Zoom 8.29MP AI Auto Tracking and Auto Framing Wide View Angle PTZ Conference Camera

Specification:

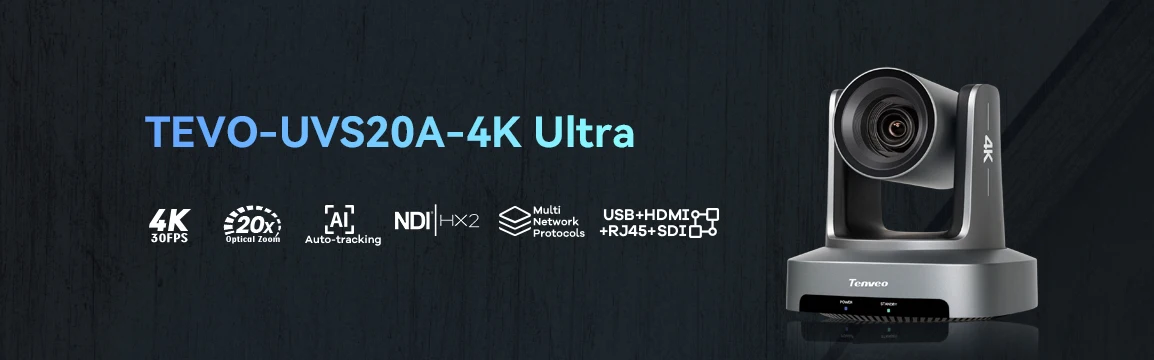

* Experience unparalleled clarity with the TEVO-UVS20A-4K PTZ camera
* 20x optical zoom and an 8.29MP Sony CMOS sensor
* USB 3.0, HDMI, RJ45, and SDI, with AI auto-tracking
* Optional NDI
* Certified by CE and RoHS, ensuring compliance with EU safety standards & high-quality performance.

Send Inquiry
TEVO-UVS20A-4K
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction



Product Description
* PTZ Conference Camera. Capture every detail and provide an immersive experience, 20x optical zoom with USB 3.0, HD-MI, RJ45, SDI
* Smooth PTZ rotation. 350(±175) horizontally and 180(±90) vertically
* Multiple connections choices-USB 3.0, HD-MI, RJ45, SDI ,POE support
* Auto-tracking and auto-framing function: To locate the person in the image quickly.
* Optional NDI
Advantages
Application Scenarios & Installations
Product Packaging & Shipping


Product Parameters
Model No.
UVS20A-4K
Image Sensor
Sony 1/2.8" CMOS
Effective pixels
8.29MP
Lens
f=4.95mm~99mm
Aperture
F1.7-F3.7
Video Format
1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97
Optical zoom
20x optical zoom
Horizontal Angle
51.9°~3.0°
Vertical Angle
39.7°~2.2°
Diagonal Angle
63.1°～3.7°
Video Format
HDMI：4KP@30/25fps,2KP@60,1080P@60/59.94/50/30/29.97/25fps,720P@60/59.94/50/30
3G-SDI：1080P@60/59.94/50/30/29.97/25fps,720P@60/59.94/50 USB3.0： H.264：max to 2160P@30fps H.265：max to 2160P@30fps MJPG：max to
2160P@30fps NV12：max to 896P@30fps YUY2：max to 896P@30fps
Backlight Compensation
Support
AI Support
Yes
AI Mode
Auto Framing/Presenter Tracking
SNR
≥50dB
Focus
Auto / Manual
Digital Noise Reduction
2D & 3D Noise Reduction
Exposure
Auto / Manual
I / O Interface
Video Interfaces
HDMI, USB3.0, RJ45, SDI
LAN
10M/100M adaptive Ethernet port; Support POE IEEE802.3af
Video Stream
Main Stream, Sub Stream
Main Stream Resolution
1920x1080
Sub Stream Resolution
1280x720
Network Protocol
RTSP,RTMP,VISCA over IP,ONVIF,SRT,NDI|HX2(Optional)
Control Protocol
VISCA/Pelco-D/Pelco-P; Baud Rate: 2400/4800/9600/38400
Control Interface
RS232(input only), RS485,USB3.0 (UVC1.1),RJ45
PTZ Parameter
Horizontal Rotation
350° (±175°) 0.1°/s～100°/s
Vertical Rotation
180° (±90°) 0.1°/s～80°/s
Preset Number
User can set up to 255 presets (10 presets by IR remote)
General Parameter
Operation Systems
 Windows 10, Windows 11or higher; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.)
Input Voltage
DC 12V
Input Current
2.0A (Max.)
Power Consumption
24W (Max.)
Store Temperature
'-20°C to 60°C
Store Humidity
20%～90% RH
Working Temperature
'0℃ to 40°C
Working Humidity
20%～80% RH
Warranty
3 years
