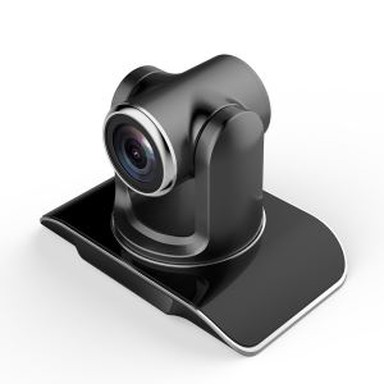

20x Optical Zoom Full Hd USB sdi PTZ Camera with 1080p 30fps and classroom lecture
Model:TEVO-VHD102U
10x optical zoom
Sleek and intelligent design
Plug & Play USB2.0 Connectivity
Crystal clear HD1080P image quality
Preset: 9 via IR remote setting (256 via RS232)
Wide field of view with no video distortion
1/2.9 inch high quality, 2.1MP (16:9) CMOS sensor
Superior quality with Full Glass Lens Material
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Compatible with most leading video conferencing software and platform
Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved 20x optical zoom full hd usb sdi ptz camera with 1080p 30fps and classroom lecture at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.
USB2.0 10XZOOM HD1080P Webcam
Tenveo VHD102U 10x Zoom 1080p PTZ Video Conference Camera USB Full HD Cam H.264 for Tele-Education Tele Medicine Huddle Room
USB2.0 video output1/2.8" HD CMOS
2.1 mega pixel
HD1080P 10X optical zoom
Pan: 0-340° Tilt :0°~120°
RS-232, RS-485, IR remote control
Supports H.264 Tips: Press the Number(1-9) directly to call the reserved preset. Fast and Smooth
PRESET+Number: To set preset position of this number.
Product parameters：
Model No. | TEVO-VHD102U |
Image Sensor | 1/2.9 inch SONY HD CMOS |
Effective pixel | 2.1 mega pixel (16:9) |
Horizontal Resolution | 1080p 30/25 720p 30/25 |
Signal standard | NTSC/P AL |
Zoom | 10x optical zoom |
Focal length | F=5.0mm(wide)-50.0(tele) |
Horizontal Angle | Near-end 47°～Far-end 5.3° |
Gain control | Auto/manual |
Focus | Auto/manual |
SNR ratio | ≥50dB |
Wide dynamic | D-WDR |
Shutter speed | 8to1/ 10000s(auto) |
Preset position | IR remote control supports 9 presets |
Pan/Tilt movement range | Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S) |
Control terminal | RS-232, RS485 |
Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485） |
Video output | USB |
Video Compression Format | YUV, MJPEG, H.264 |
Noise Reduction | 2D/3D |
Work temperature | -10°C-~50°C |
Storage temperature | -20°C~60°C |
Baud rate | 2400/4800/9600/19200bps |
Decoder | Built-in |
Address set | 1~255 |
Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
Power supply | DC12 V/ 2A |
Power consumption | 12 W |
Net weight/Gross weight | 1.7kg/3.5kg |
Dimension(LXWXH) | 260*175*180 mm /296*255*218mm (before / after packing) |
Accessories | DC 12V Power adaptor, IR remote control, Manual, RS232 cable, USB 2.0 cable, Ceiling brackets & screws. |
