12x Optical Zoom with 4K OEM PTZ Conference Camera From Tenveo Manufacture
video
12x Optical Zoom with 4K OEM PTZ Conference Camera From Tenveo Manufacture

12x Optical Zoom with 4K OEM PTZ Conference Camera From Tenveo Manufacture

Feature:
* 4K60fps, 12x optical zoom
* HDMI, USB3.0, RJ45, SDI output,POE
* NDI|HX2,RTSP, RTMP, ONVIF, GB28181; Support VISCA Over IP
* Video Conference Camera for Church/Live Streaming

Send Inquiry
TEVO-UV612A-4K
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved 12x optical zoom with 4k oem ptz conference camera from tenveo manufacture at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.



Product descriptions from the supplier:

Feature:
* 4K60fps, 12x optical zoom
* HDMI, USB3.0, RJ45, SDI output,POE
* NDI|HX2,RTSP, RTMP, ONVIF, GB28181; Support VISCA Over IP
* Video Conference Camera for Church/Live Streaming



Our service advantage:

1. Tenveo can provide you with reliable OEM manufacturing, B2B Or Wholesale services

2. 14 years of experience in video and audio top contract manufacturers

3. ISO certified factories, low MOQ manufacturers with high quality control

4. Competitive pricing, escort for your mass production orders, long-term supplier support



Product Description
Main features


Specifications
Model No.
UV612A-4K (NDI)
Image Sensor
Sony IMX415 1/2.8" CMOS
Effective Pixels
8.29MP, 16:9
Optical Zoom
12x zoom
Lens
f=3.42-40.02mm
Aperture
F1.88～F3.77
Horizontal Angle
80.56°(W)-7.89°(T)
Vertical Angle
49.61°(W)-4.46°(T)
Diagonal Angle
89.51°(W)-9.04°(T)
Video Format
HDMI(4KP@60/50/30/25fps,1080P@60/50/30/25fps,720P@60/50/30/25fps);
USB3.0(3840*2160P@30fps,2560*1440P@30fps,1920*1080P@30fps,1280*720P@30fps,640*480P@30fps,320*240P@30fps;
YUY2/NV12/H.264/H.265/MJPG
Video Encoding Format
H.264, H.265, MJPG, YUY2
Backlight Compensation
Support
SNR
>50dB
Focus
Auto / Manual
Digital Noise Reduction
2D & 3D Noise Reduction
Exposure
Auto / Manual
I / O Interface
Video Interfaces
HDMI, USB3.0, RJ45, SDI
Video Compression Format
H.264, H.265, MJPG, YUY2
LAN
10M/100M/1000M adaptive Ethernet port; Support POE IEEE802.3at
Network Protocol
NDI|HX2,RTSP, RTMP, ONVIF, GB28181; Support VISCA Over IP
Control Protocol
VISCA/Pelco-D/Pelco-P; Baud Rate: 9600/4800/38400/2400
Control Interface
RS232, RS485,USB3.0 TYPE-B(UVC1.1),RJ45
PTZ Parameter
Pan/Tilt Rotation
±175°, -90°～+90°
Pan Control Speed
0.1 -80°/sec
Tilt Control Speed
0.1 -60°/sec
Preset Number
User can set up to 255 presets (10 presets by IR remote)
General Parameter

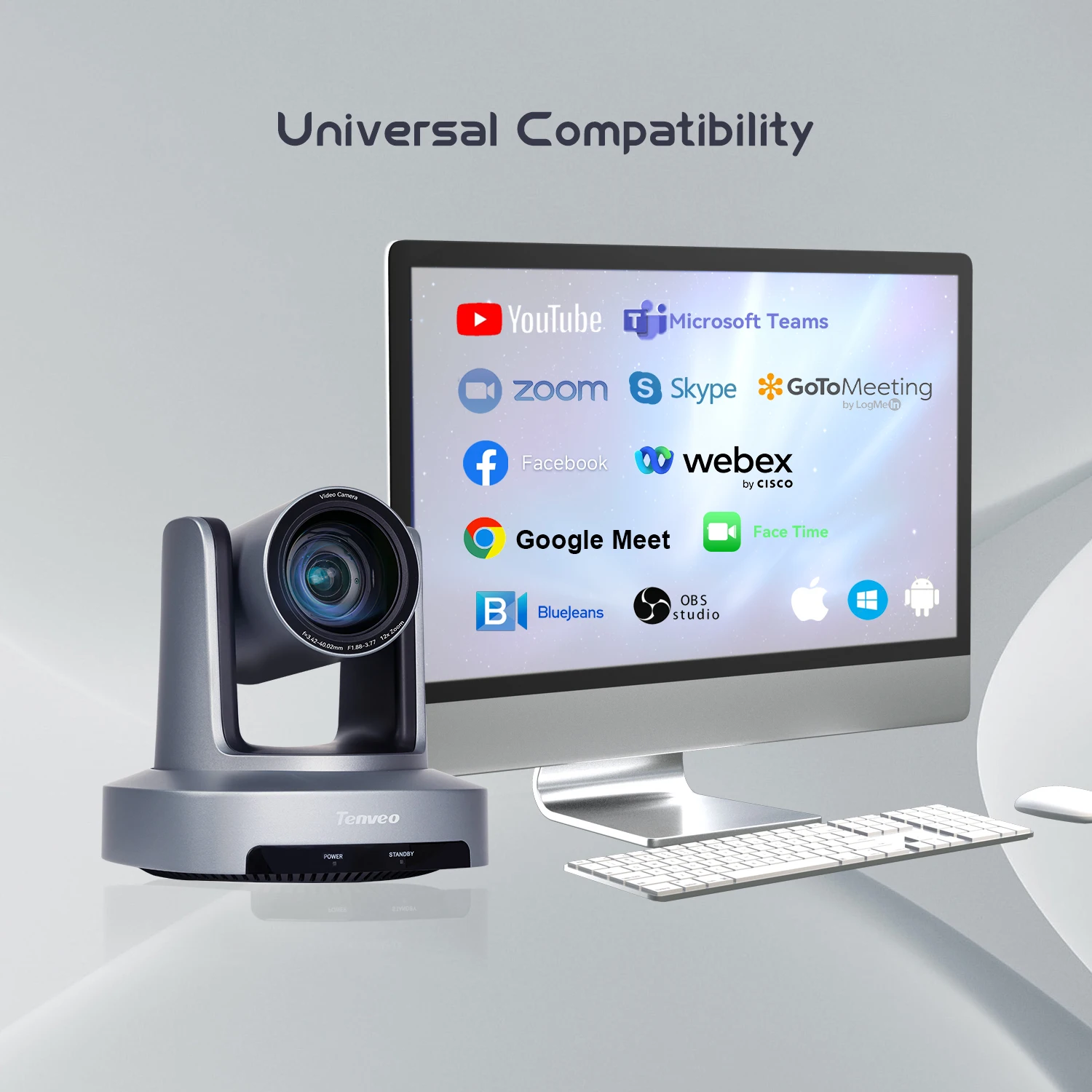

Operation Systems
Windows 7, Windows 8.1, Windows 10, Windows 11; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.)
Input Voltage
DC 12V
Input Current
2.0A (Max.)
Power Consumption
13W (Max.)
Store Temperature
-20°C to 60°C

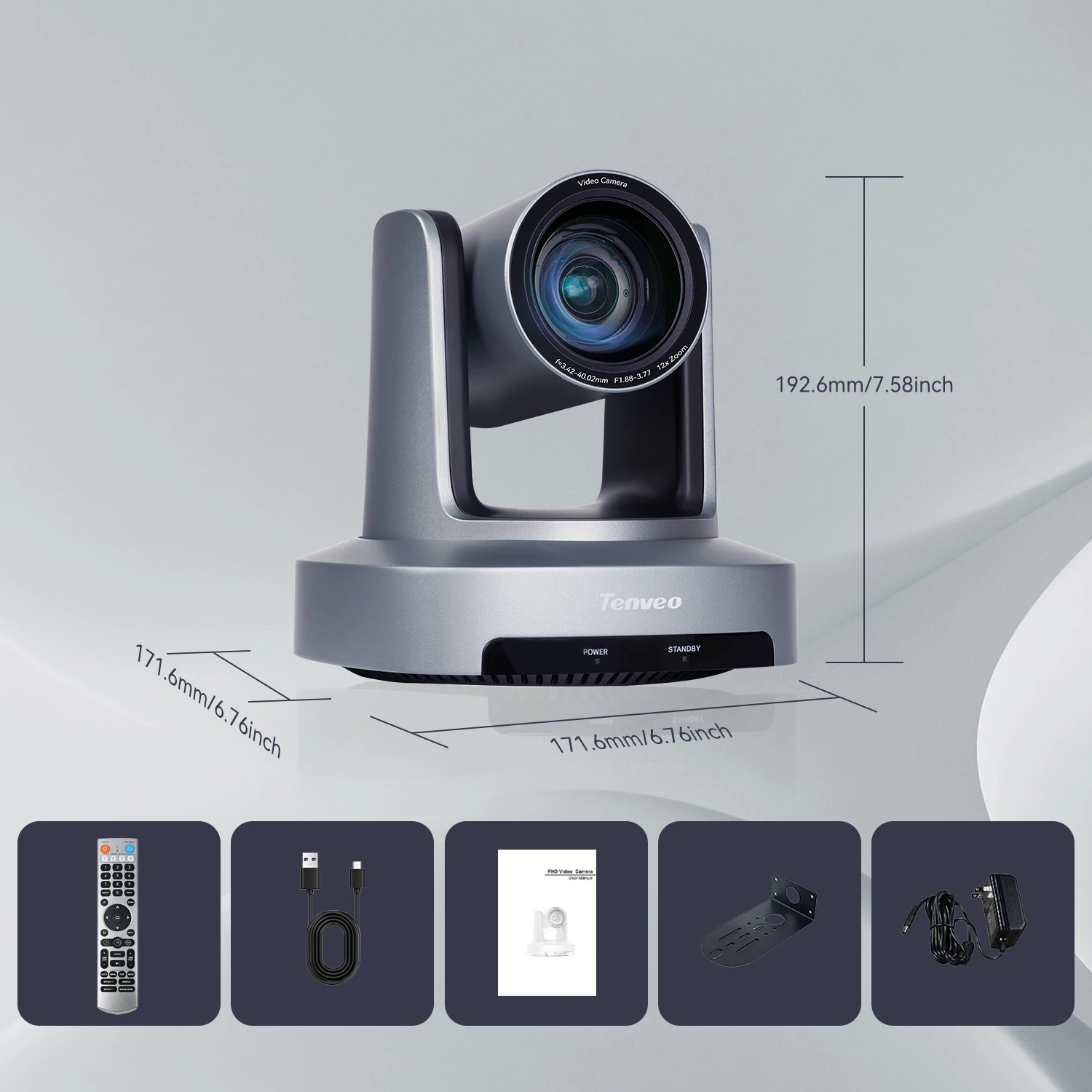

Dimension (W*H*D)
171.6*192.6*171.6mm/ 260*217*197mm (before/ after packing)
N.W. / G.W.
1.35kg/ 2.05kg (Net/ Gross weight)
Our Certificates

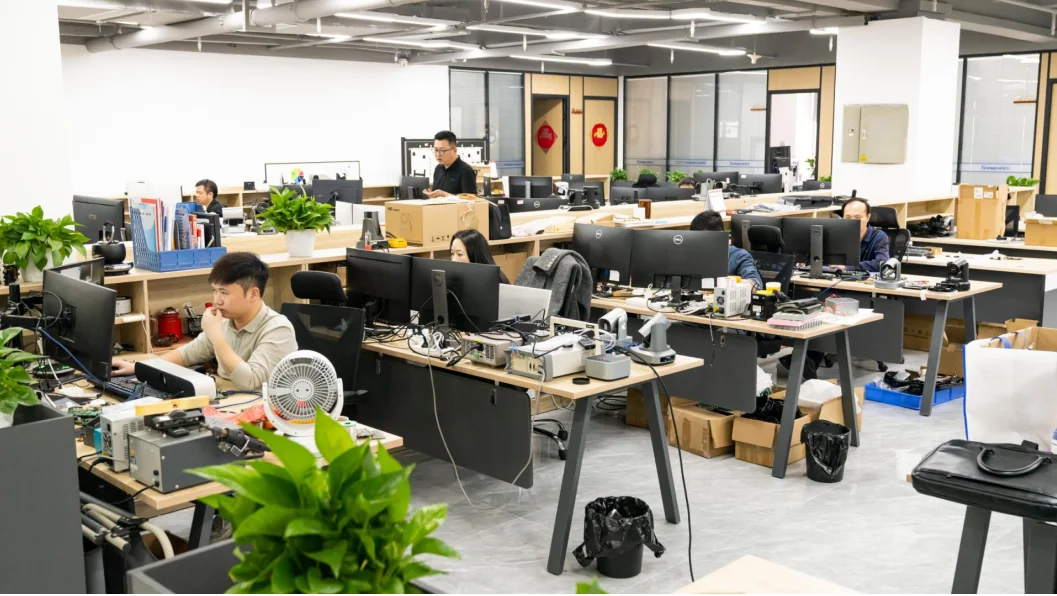

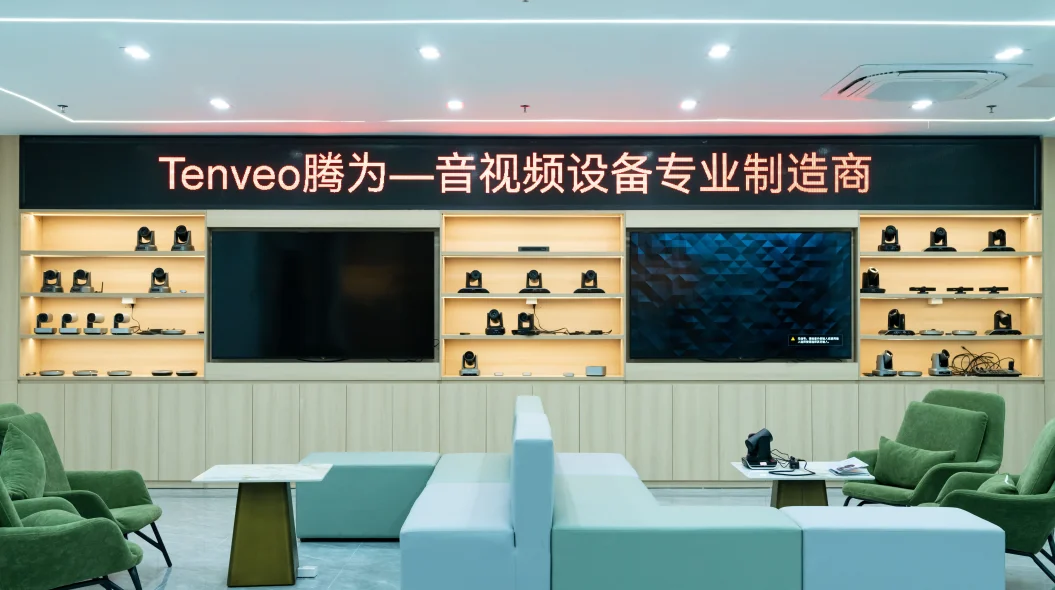

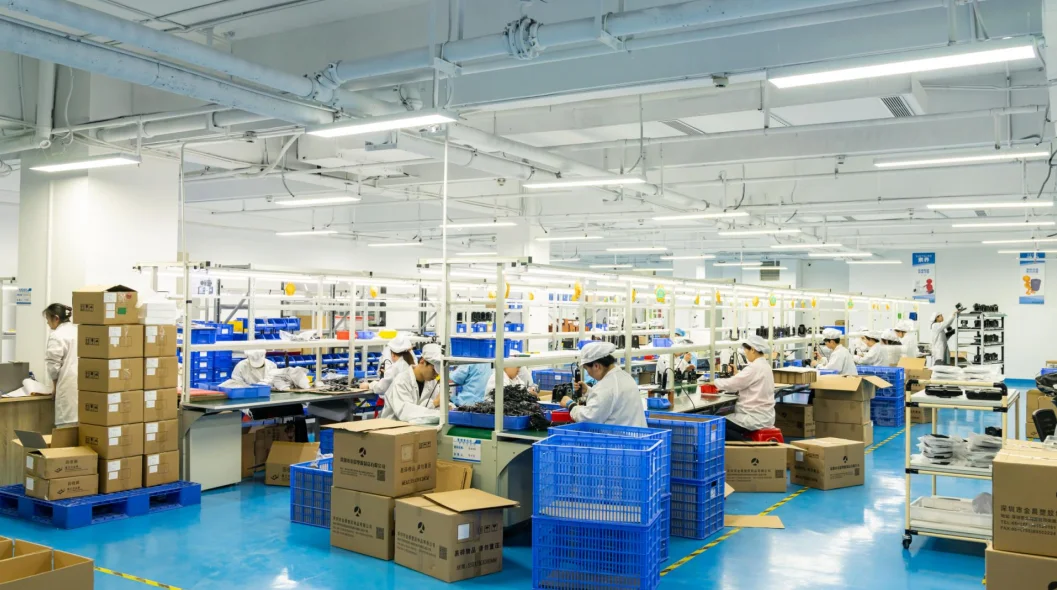

About Tenveo
SZ Tenveo Video Technology Co., Ltd
founded in 2011, and headquartered in Shenzhen with two offices in Xi'an and Chengdu, China, is a leading ISO9001-certified manufacturer of PTZ cameras, webcams, speakerphones and keyboard controller. With more than 14 years of OEM/ODM/JDM experience and a global presence in more than 110 countries, we pride ourselves in the design, engineering and manufacturing of Pro AV solutions to elevate experiences of learning, working, and collaborating.
FAQ
01. What kind of camera and microphone should l use?

Most laptops and monitors come with built-in cameras and microphones-these work great for Tenveo software. For meeting room
spaces, we have video conferencing cameras and speakerphones that are specifically designed for small huddle rooms, conference and
boardrooms, and large auditorium spaces. You can check our service guide for more information on different meeting room systems.

02. ls it easy to operate?
Yes, Setting up a conference room with TENVEO doesn't require a technology degree - just connect the camera to a TV and the
internet, give it power and pair it to your account to start making calls. There simply isn't a more powerful or easier-to-use
video conferencing solution available.

03. Can i bring more than one person into a call at the same time?
Yes.We currently offer group calling for up to 500 different participants, which could be 500 people dialing in from their
laptops, pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video
conferencing systems depending on your preferences, there are some different layout options for how you want to view those larger
group calls.

04. What is the resolution of your cameras?
We have 1920x1080p@60fps progressively output, and 1080p@30fps also 720p@30fps.

05. What is the Video Connector?
There are USB 2.0, HDMI HD-SDI, and USB Video output.

06. What is the zoom of your video conference cameras?
Support fixed focus, 3x 10X, 20X,30X optical zoom.

07. How to control this Camera?
There are RS232, RS485 PTZ Control, and also support VISCA PELCO-P, PELCO-D to control through your Codec or PC through RS232, and

support IR remote control.
