Group Kit For Live Streaming 4K 30x Optical Zoom Tracking PTZ Camera And Controller

* FHD PTZ Conference Camera. Capture every detail and provide an immersive experience * 30x optical zoom with USB 3.0, HDMI, RJ45,SDI
* Smooth PTZ rotation. 350(±175) horizontally and 180(±90) vertically
* Multiple connections choices-USB 3.0, HDMI, RJ45, SDI . Effective distance-using recommended: USB-15m/49.21ft, HDMI-30m/98.42ft.
*Auto-tracking and auto-framing function: To locate the person in the image quickly.
*Optional NDI
*4K 30FPS
*Joystick Controller 4D joystick and 5'' LCD screen

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved group kit for live streaming 4k 30x optical zoom tracking ptz camera and controller at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.

Product Description

product-1-1

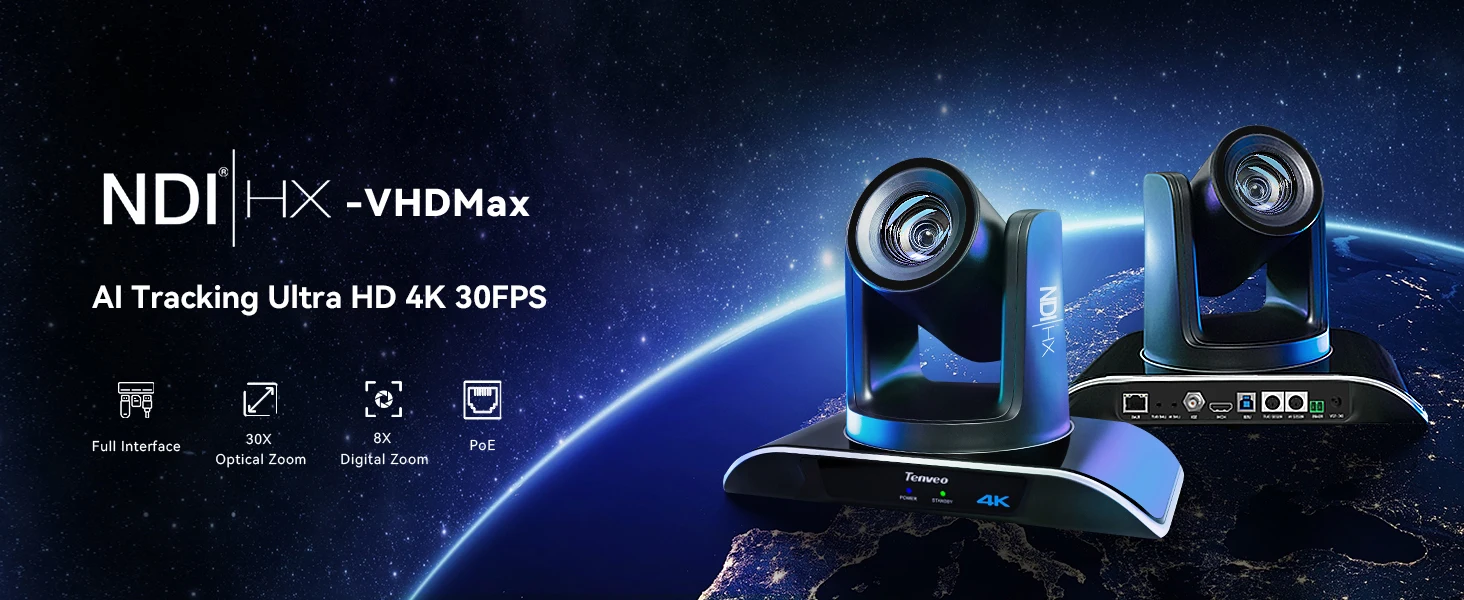

The VHD630A(4K)PTZ camera

* FHD PTZ Conference Camera. Capture every detail and provide an immersive experience, 30x optical zoom with USB 3.0, HDMI, RJ45,SDI
* Smooth PTZ rotation. 350(±175) horizontally and 180(±90) vertically
* Multiple connections choices-USB 3.0, HDMI, RJ45, SDI . Effective distance-using recommended: USB-15m/49.21ft, HDMI-30m/98.42ft.
*Auto-tracking and auto-framing function: To locate the person in the image quickly.
*Optional NDI

*4K 30FPS

The KB200PRO keyboard controller

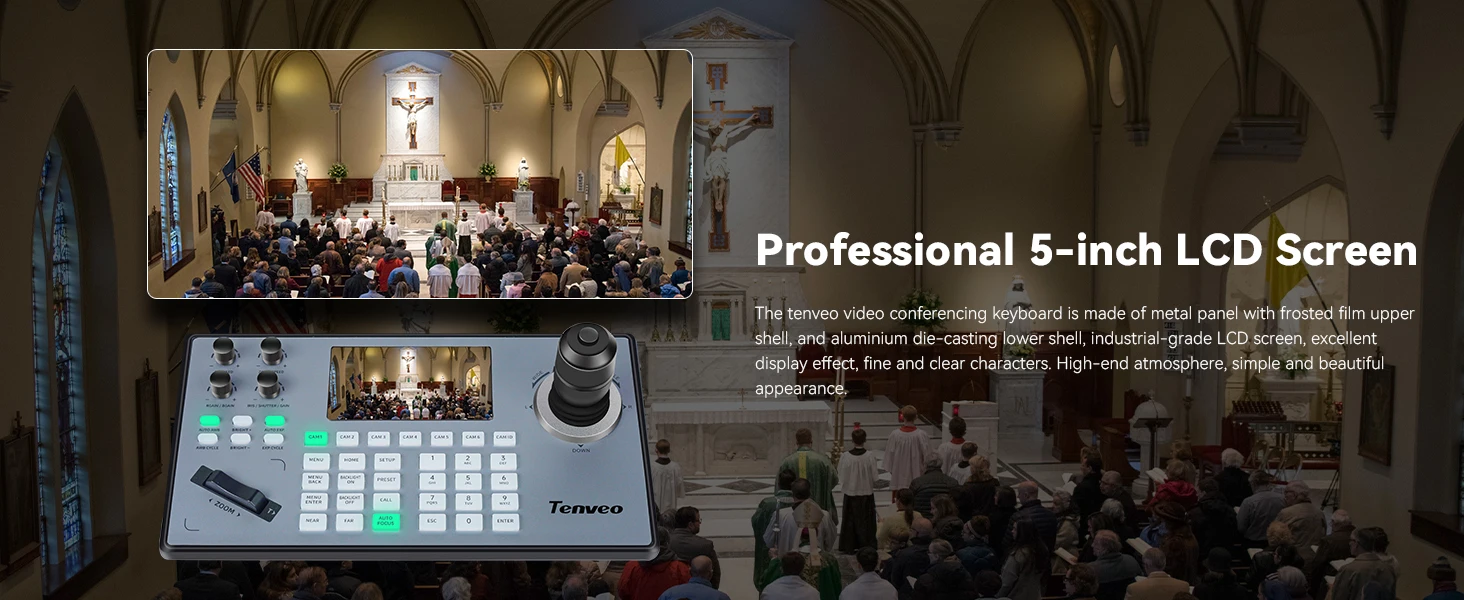

*Joystick Controller 4D joystick and 5'' LCD screen preview, supporting real-time preview of current viewing, allowing you to effortlessly control and adjust your camera angles with utmost precision, resulting in smooth and professional live streaming experiences. You can easily pan, tilt, zoom, focus, Iris, backlight, presets, PTZ Speed, and quick PTZ Camera select according to your needs.

*Compatibility The PTZ Controller support network and analog two control modes. With support for a wide array of protocols including Visca UDP, Visca TCP, Sony Visca, Pelco-D/P, NDI(Partially compatible), this joystick controller seamlessly integrates with a variety of cameras and equipment, making it suitable for Large Conferences, church events, live streaming, OBS, vMix, Skype, Zoom, Teams, Fackbook, Youtube and much more.

*The Joystick Controller supports IE browser to add configuration front-end device parameters, and supports 7 cameras quick select, controling up to 255 PTZ cameras, easy and fast operation of the conference video camera, greatly improving the speed of multiple cameras to switch back and forth control. These features make it easy to achieve the exact shot you want, without any hassle.

Advantages

product-1-1

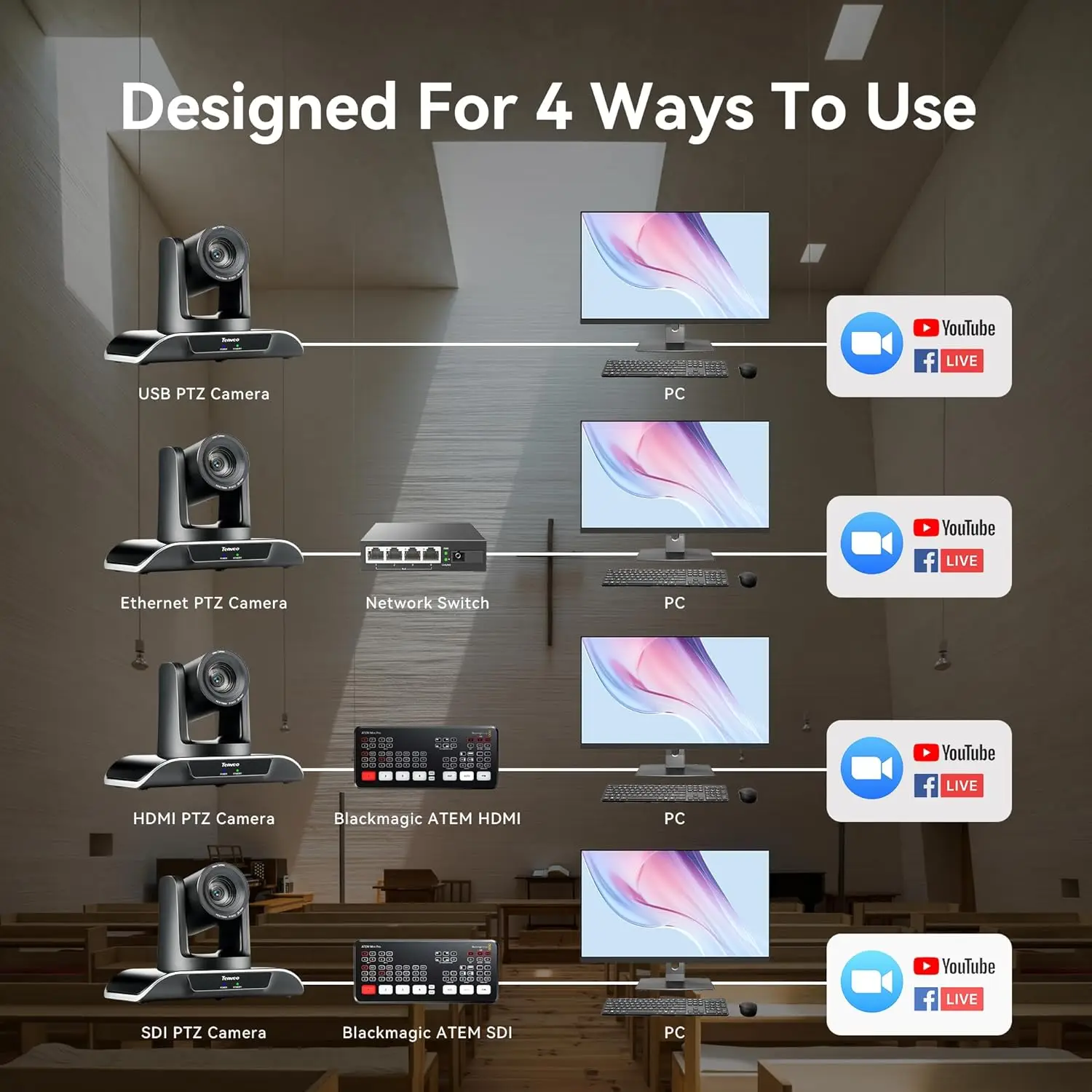

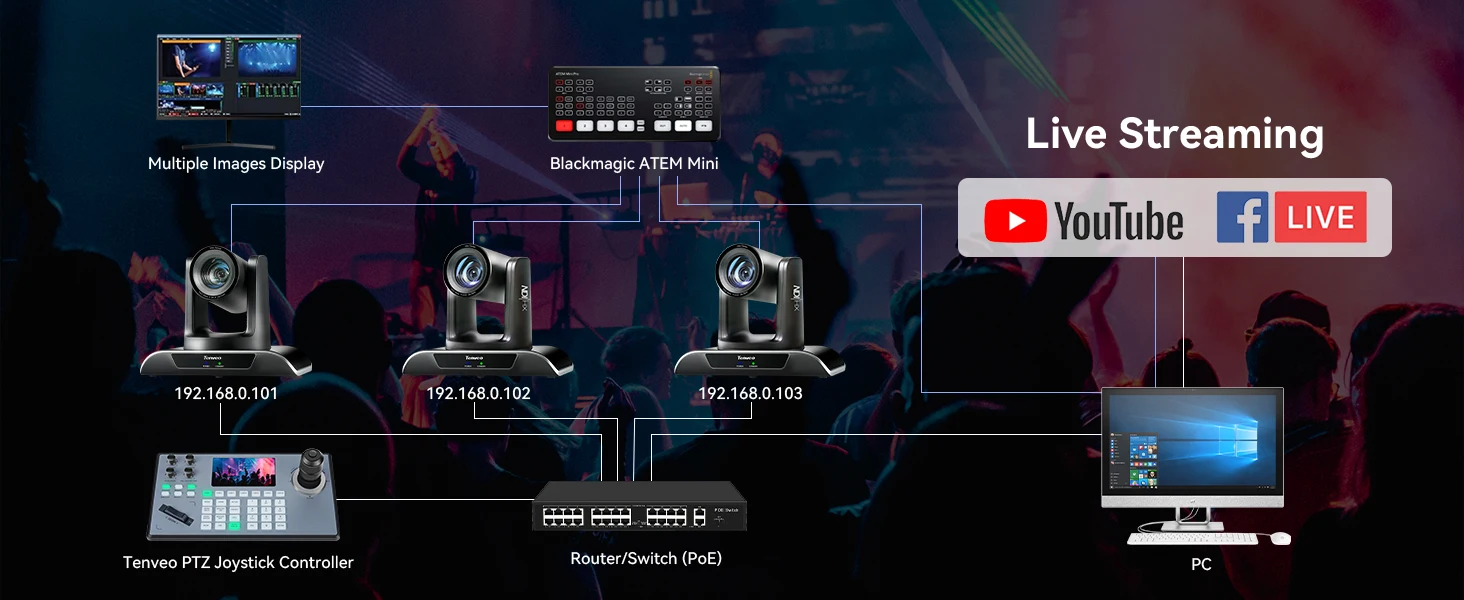

Application Scenarios & Installations

product-1-1

Product Parameters

Model No.	The camera TEVO-VHD630A(4K)
Image Sensor	1/2.8''SONY CMOS
Effective pixels	8.29MP
Lens	f=4.6mm ~ 138mm
Aperture	F1.8 ~ F3.6
Video Format	4KP30,1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97
Optical zoom	30X optical zoom
Horizontal Angle	62.3° ~ 2.31°
Vertical Angle	36.1° ~ 1.29°
Diagonal Angle	69.5° ~ 2.63°
Backlight Compensation	Support
White Balance	Auto, Indoor, Outdoor, One Push, Manual, VAR
Digital Zoom	8X
PTZ Parameter
Pan/Tilt Rotation	±175°, -90°~+90°
Pan Control Speed	0.1°/s～100°/s
Tilt Control Speed	0.1-80°/Sec
Preset Number	255 presets by Pelco D, 32 presets by Pelco-P, 7 presets by Visca(10 presets by remote controller)
SNR	>50dB
Focus	Auto/Manual
General Parameter
Operation Systems	Windows 7/8.1/10/11; Andriod, Mac OS 10.10 or higherLinux(Require to support UVC)
Input Voltage	DC 12V
Input Current	1.0A(max.)
Power Consumption	13W(max.)
Store Temperature	-10℃~+60℃
Store Humidity	20%~90%
Working Temperature	-10℃~+50℃
Working Humidity	20%~80%
Dimension	260217197mm(After Packing)
N.W./G.W.	1.5kg/2.5kg
Accessory	1camera, 1USB cable, 1* powder adapter, 1wall mount, 1 manual
Warranty	3 years
I/O Interface
Video interfaces	USB 3.0, HDMI, RJ45, SDI
Video Compression Format	H.264, H.265, MJPG, YUV2
Control Protocol	VISCA/Pelco-D, Pelco-P; Baud Rate: 9600/4800/38400/2400
Control Interface	RS232(Input & Output), RS485, Type-C(UVC1.1)
Digital Noise Reduction	2D&3D Noise Reduction
Exposure	Auto/Manual
PoE	Support
IPC Features
Video Encoding Format	H.264/H.265/MJPG
Video Stream	Main Stream, Sub Stream
Main Stream Resolution	1920x1080, 1280x720, 1024x576 , 940x540,etc.
Sub Stream Resolution	1280x720, 1024x576, 720x480, 720x408,etc.
Video Bit Rate	32Kbps ~ 102400Kbps
Bit Rate Type	Variable Rate, Fixed Rate
Frame Rate	50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression	AAC
Audio Bit Rate	96Kbps, 128Kbps, 256Kbps
Network Protocol	NDI \|HX2,SRT,TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.

Model No.		TEVO-KB200PRO
CHIP		HIS3536DV100
SYSTEM		Linux
Decoding		H.265, H.264
RESOLUTION		MAX 1080P for 1 channel:1920*1080@30fps
Max equipment		999
PROTOCOL		VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF
Camera Control		Exposure Selection: YES White Balance: YES Backlight Control: YES Display status of WB, Iris, Gain, Shutter, Focus: YES Focus Model Selection: YES Auto Focus/Manual Focus: YES
User Interfaces		Display: LED Speed Control: YES Zoom Rocker: Yes Joystick Zoom Ring: Yes Programmable function buttons: 6
Joystick		4D

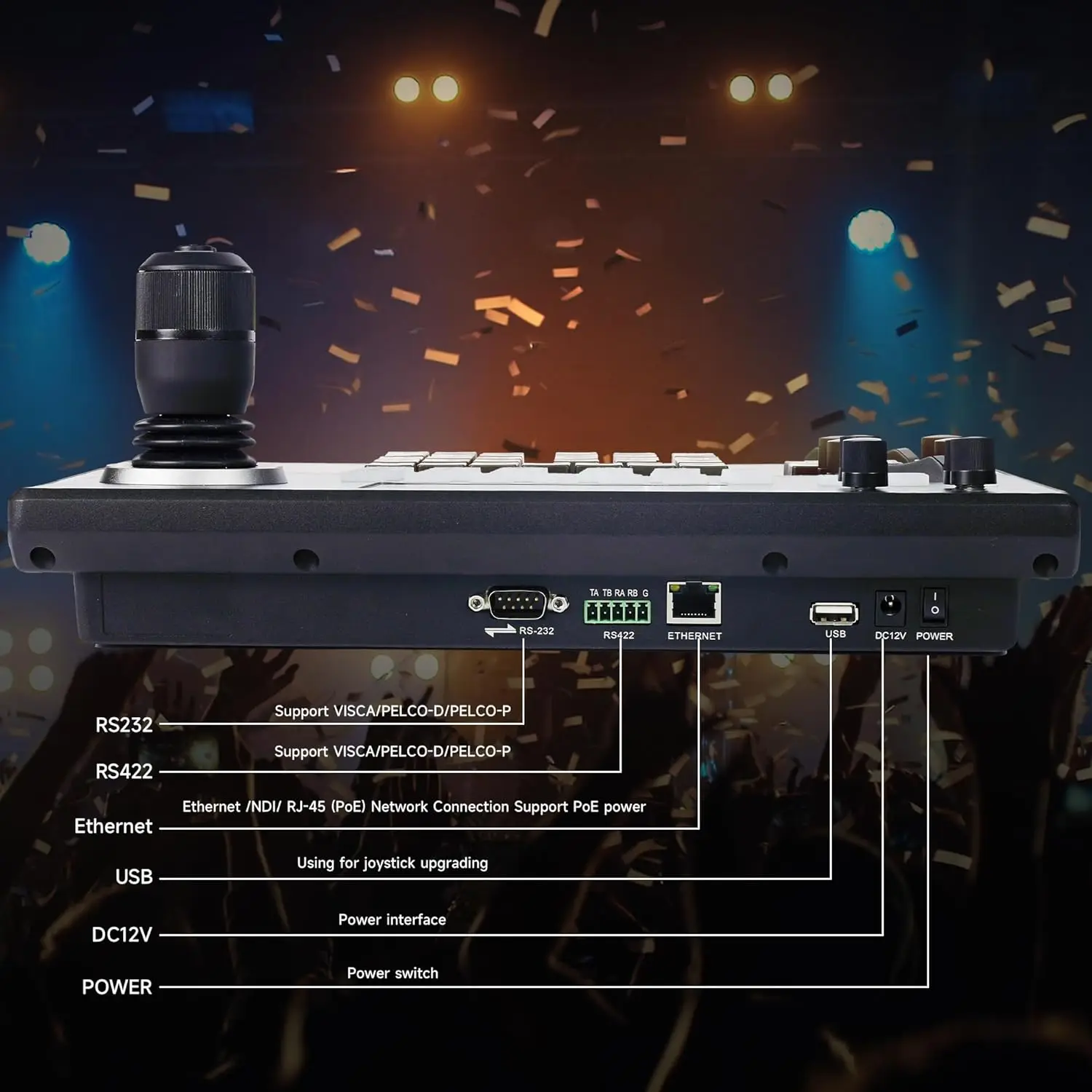

Output		RS422(Reserved), RS232(Development port), RJ45
Accessories		Knob, Silicone button
Beep		On/off
Display		TFT LCD 720*1280
Max camera control		Max 255 with multiple protocols including NDI/IP
Power consumption		≤5W
