20x optical zoom ptz 1080i manufacturers
TEVO-VHD202U
USB2.0
HD1080P
2.10 mega pixel
20x optical zoom
Pan: 0-355° Tilt ：+/-60°
RS-232，RS-422，RS-485，IR remote control
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved 20x optical zoom ptz 1080i manufacturers at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.

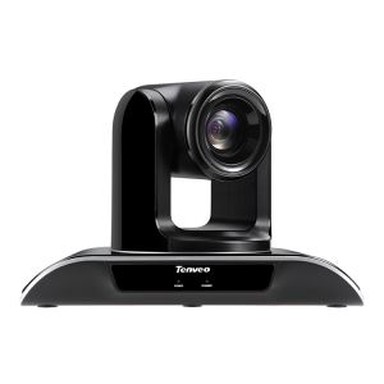

Conference PTZ camera 20x optical zoom ptz 1080i manufacturers
All packing list in the box for the 20x optical zoom ptz 1080i manufacturers:
Product overview：
20x optical zoom
Sleek and intelligent design
Plug & Play USB2.0 Connectivity
Crystal clear HD1080P image quality
Preset: 9 via IR remote setting (256 via RS232)
Wide field of view with no video distortion
1/3 inch high quality, 2.1MP (16:9) CMOS sensor
Superior quality with Full Glass Lens Material
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Compatible with most leading video conferencing software and platform
Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth
Product parameters:
Product No. | TEVO-VHD202U |
Image Sensor | 1/3 inch Exmor CMOS |
Effective pixel | 2.1 mega pixel（16:9） |
Horizontal Resolution | 1080p30/25, 720p30/25 |
Signal standard | NTSC/PAL |
Zoom | 20x optical zoom |
Focal length | F=4.7mm(wide)-94.0(tele) |
Horizontal Angle | Near-end 55.5°～Far-end 3.0° |
Gain control | Auto/manual |
Focus | Auto/manual |
SNR ratio | ≥50dB |
Wide dynamic | D-WDR |
Shutter speed | 8to1/ 10000s(auto) |
Preset position | IR remote control supports 9 presets PELCO Protocol supports 256 presets |
Pan/Tilt movement range | Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S) |
Control terminal | RS-232, RS485 |
Control Protocol | VISCA, PELCO-D, PELCO-P（RS-232, RS485） |
Video output | USB |
Noise Reduction | 2D/3D |
Work temperature | -10°C-~50°C |
Storage temperature | -20°C~60°C |
Baud rate | 2400/4800/9600/19200bps |
Decoder | Built-in |
Address set | 1~256 |
Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
Power supply | DC12 V/ 2A |
Power consumption | 12 W |
Net weight/Gross weight | 1.7kg/3.5kg |
Dimension(LXWXH) | 260*175*180 mm /296*255*218mm (before / after packing) |
Accessories | DC 12V Power adaptor, IR remote control, Manual, USB 2.0 cable, Ceiling brackets & screws. |
FAQ:
Q:What kind of camera should I use?
A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software.For meeting room spaces, we have video conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and boardrooms,and large auditorium spaces.You can check our service guide for more information on different meeting room systems.
Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.
Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.
Q:What is the Video Connector?
A:There are USB 2.0, USB3.0,HDMI,3G-SDI,Video output.
Q:How many time zoom?
A:Support fixed focus, 3X 10X, 20X, 30X optical zoom.
Q:Which kind of software compatible with this Camera?
A:It’s compatible withZOOM , PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh, WebEx, easy meeting, Vidtel and working with Microsoft Lync Software,and ZOOM.US, SKYPE, VIDYO Etc.
