20x zoom USB Video Conference Camera
20x optical zoom
USB2.0 interface
HD1080P 2.1 mega pixel
Pan: 0-355° Tilt ：+/-60°
RS-232，RS-422，RS-485，IR remote control
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved 20x zoom usb video conference camera at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.

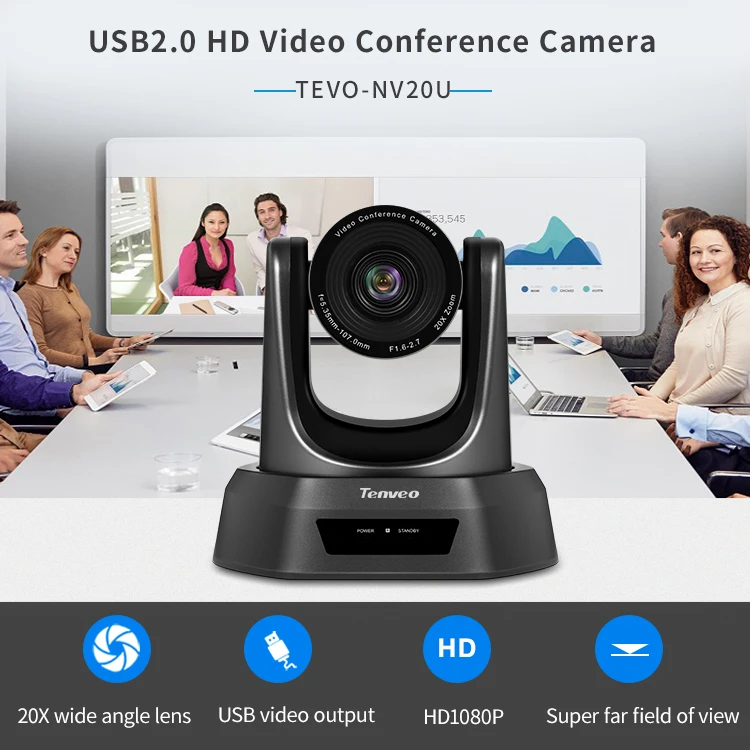

TEVO-NV20U 20X USB Video Conferencing Camera
1.Main features of the 20x zoom USB Video Conference Camera :
USB2.0 video output | 1/3 inch HD Color CMOS | 2.1 mega pixel(16:9) |
HD1080P 20X optical zoom | Pan: ±175°(max speed 80°/S), Tilt: 35°~55°(max speed 60°/S) | RS-232, RS-485, IR remote control |

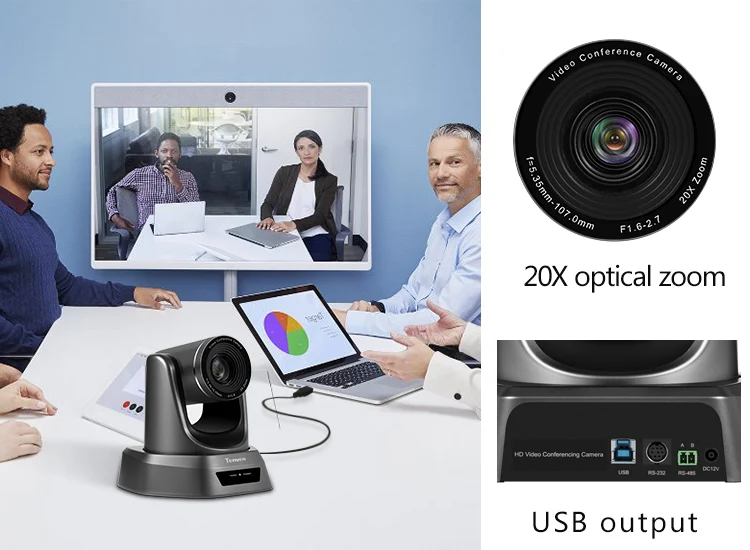

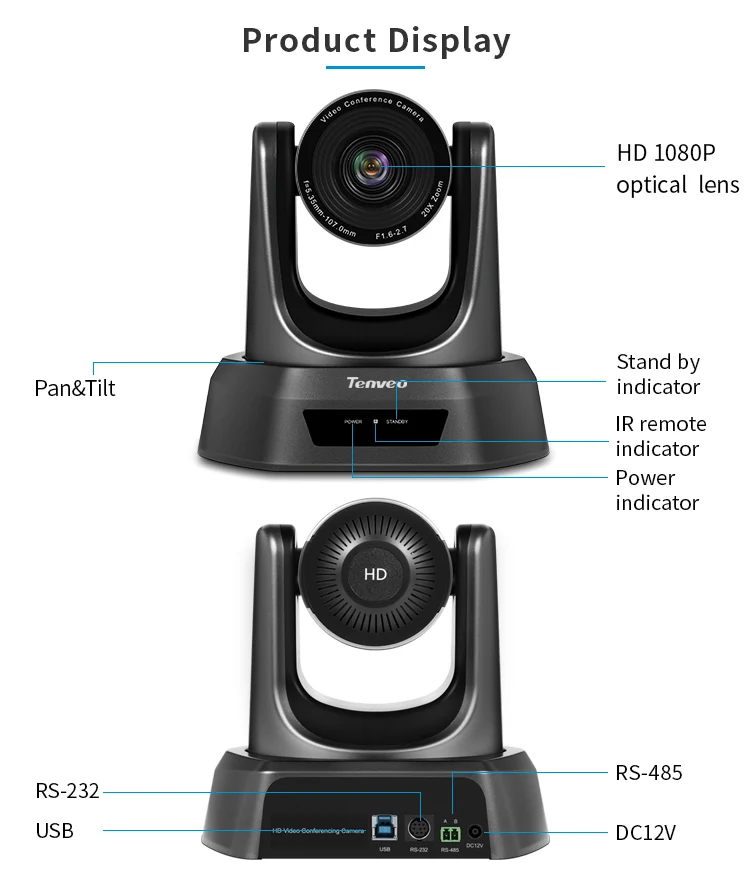

2.Main details of the20x video conference camera:
3.Main application of the 20x zoom USB Video Conference Camera:
Product No. | TEVO-NV20U |
Image Sensor | 1/3 inch HD Color CMOS |
Effective pixel | 2.1 mega pixel(16:9) |
Horizontal Resolution | 1080P30/25, 720P30/25 |
Signal standard | NTSC/PAL |
Zoom | 20x optical zoom |
Minimum luminance | 0.5Lux at F2.0 |
Focal length | f=5.0mm~50.0mm F1.8(W)~2.1(T) |
Horizontal Angle | Near-end 55.5°~Far-end 3.0° |
Gain control | Auto |
Focus | Auto |
White balance | Auto |
SNR ratio | ≥50dB |
Shutter speed | 8 to 1/10000s (auto) |
Preset position | IR remote control supports 9 presets, PELCO Protocol supports 256 presets |
Pan/Tilt movement range | Pan: 175°(max speed 80°/S), Tilt: 35°~55°(max speed 60°/S) |
Control terminal | USB, RS-232, RS485 |
Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
Video output | USB |
Video Compression Format | YUV, MJPG, H.264 |
Noise Reduction | 2D/3D |
Work temperature | -10°C-~50°C |
Storage temperature | -20°C~60°C |
Baud rate | 38400/9600bps |
Decoder | Built-in |
Address set | 1~256 |
Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
Power supply | DC12V/ 2A |
Power consumption | 12 W |
Net weight/Gross weight | 1.5kg/2.85g |
Dimension(LXWXH) | 260*175*180 mm /296*255*218mm (before / after packing) |
Accessories | DC 12V Power adaptor, IR remote control, Manual, USB2.0 cable, Ceiling brackets & screws. |
