HDMI USB IP Top Video Conferencing Solutions
Model:TEVO-VHD20H
10X optical zoom
HD1080P 2.38 mega pixel
HDMI,USB,IP
Pan: 0-355° Tilt ：+/-60°
VISCA，PELCO-D，PELCO-P（RS-232，RS485）
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved hdmi usb ip top video conferencing solutions at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.
Tenveo VHD20H Conference Room Camera
20X Optical Zoom HDMI HD 1080P 60fps USB PTZ Camera Supports Skype Zoom Teams OBS Windows Mac for Business Meeting Church Education Medical Live Streaming
Tenveo VHD20H USB PTZ Camera is equipped with an 20x optical zoom wide angle lens
1080P 60fps video output.
VHD20H Video conference camera supports 3 HD video output channels including USB/HDMI/LAN.
Effective distance-using recommended: USB-15m/49.21ft, HDMI-30m/98.42ft, LAN-IP connection without limited.
Camera can be used in many scenarios such business meetings,education,church events,training and live streaming etc.
Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Application: Compatible with most popular apps like Zoom, Skype for Business, Microsoft Lync, Teams, Cisco, WebEx, OBS and so on.
Tenveo VHD20H Conference Room Camera
20X Optical Zoom HDMI HD 1080P 60fps USB PTZ Camera Supports Skype Zoom Teams OBS Windows Mac for Business Meeting Church Education Medical Live Streaming
Model No. | TEVO-VHD20H |
Image Sensor | 1/3 inch HD CMOS |
Effective pixel | 2.38 mega pixel(16:9) |
Horizontal Resolution | 1080P60/50/30/25, 1080I60/50/30/25, 720P 60/50 |
Focal length | F=4.7mm(wide)-94.0(tele) |
Signal standard | NTSC/PAL |
Zoom | 20x optical zoom |
Horizontal view angle | Near-end 55.5°～Far-end 3.0° |
Gain control | Auto/manual |
Focus | Auto/manual |
SNR ratio | ≥50dB |
Shutter speed | 1/1 sec to 1/10000s (22 steps) |

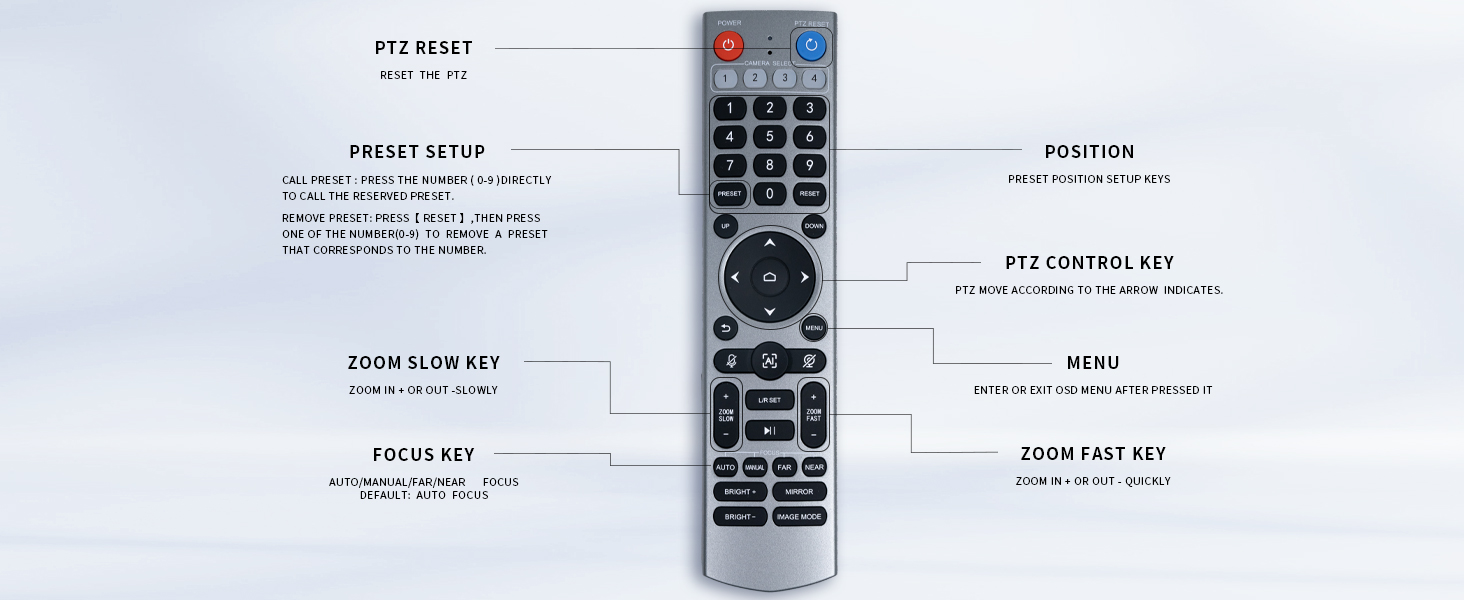

Preset position | Remote-controller supports 9 presets, PELCO Control Protocol supports 256 presets |
Pan/Tilt movement range | Pan: 340°(Max Speed 80°/S), Tilt: 120°(Max Speed 60°/S) |
Control terminal | RS-232, RS485 |
Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
Video output | USB,HDMI,IP |
Noise Reduction | 2D/3D |
Work Temperature | -10°～50° |
Work Humidity | -20°～60° |
Baud rate | 2400/4800/9600/19200bps |
Decoder | Built-in |
Address Set | 1~256 |
Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
Power supply | DC12V/2A |
Power | 12W |
Weight | 1.7kg/3.5kg |
Size | 260*175*180 mm /296*255*218mm (before / after packing) |
Accessories | DC 12V Power adaptor, IR remote control, Ceiling brackets & screws, Manual, RS-232Ccable |
