Tenveo UVS20A-4K 4k AI Auto Tacking and Auto Framing Function 20x Optical Zoom 8.29MP PTZ Conference Camera
* PTZ Conference Camera. Capture every detail and provide an immersive experience, 20x optical zoom with USB 3.0,
HDMI, RJ45, SDI
* Smooth PTZ rotation. 350(±175) horizontally and 180(±90) vertically
* Multiple connections choices-USB 3.0, HD-MI, RJ45, SDI .
* Auto-tracking and auto-framing function: To locate the person in the image quickly.
* Optional NDI
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved Tenveo UVS20A-4K 4k AI Auto Tacking and Auto Framing Function 20x Optical Zoom 8.29MP PTZ Conference Camera at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.
* PTZ Conference Camera. Capture every detail and provide an immersive experience, 20x optical zoom with USB 3.0, HD-MI, RJ45, SDI
* Smooth PTZ rotation. 350(±175) horizontally and 180(±90) vertically
* Multiple connections choices-USB 3.0, HD-MI, RJ45, SDI .
*Auto-tracking and auto-framing function: To locate the person in the image quickly.
*Optional NDI
Advantages
Application Scenarios & Installations
Product Packaging & Shipping

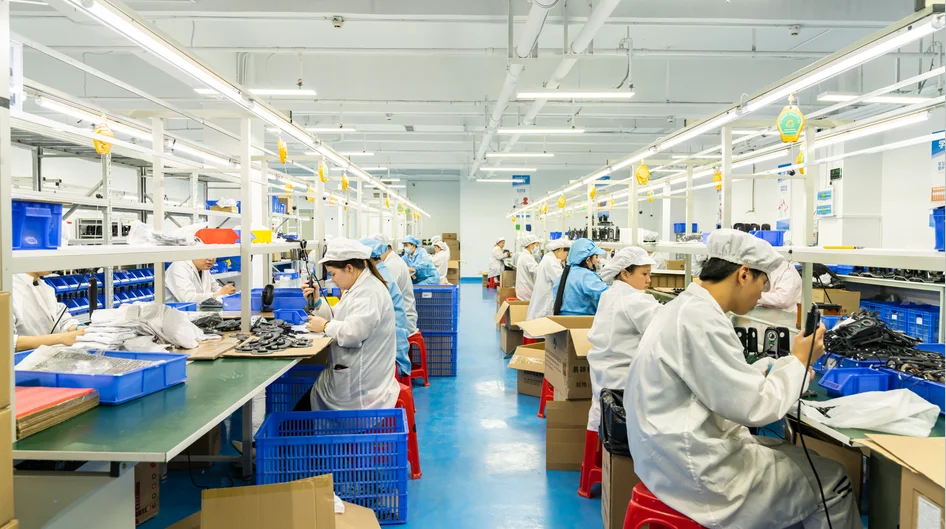

Company Profile
|
Model No. |
UVS20A-4K |
|
Image Sensor |
Sony 1/2.8" CMOS |
|
Effective pixels |
8.29MP |
|
Lens |
f=4.95mm~99mm |
|
Aperture |
F1.7-F3.7 |
|
Video Format |
1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97 |
|
Optical zoom |
20x optical zoom |
|
Horizontal Angle |
51.9°~3.0° |
|
Vertical Angle |
39.7°~2.2° |
|
Diagonal Angle |
63.1°～3.7° |
|
Video Format |
HDMI：4KP@30/25fps,2KP@60,1080P@60/59.94/50/30/29.97/25fps,720P@60/59.94/50/30 |
|
Backlight Compensation |
Support |
|
AI Support |
Yes |
|
AI Mode |
Auto Framing/Presenter Tracking |
|
SNR |
≥50dB |
|
Focus |
Auto / Manual |
|
Digital Noise Reduction |
2D & 3D Noise Reduction |
|
Exposure |
Auto / Manual |
|
I / O Interface |
|
|
Video Interfaces |
HDMI, USB3.0, RJ45, SDI |
|
LAN |
10M/100M adaptive Ethernet port; Support POE IEEE802.3af |
|
Video Stream |
Main Stream, Sub Stream |
|
Main Stream Resolution |
1920x1080 |
|
Sub Stream Resolution |
1280x720 |
|
Network Protocol |
RTSP,RTMP,VISCA over IP,ONVIF,SRT,NDI|HX2(Optional) |
|
Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate: 2400/4800/9600/38400 |
|
Control Interface |
RS232(input only), RS485,USB3.0 (UVC1.1),RJ45 |
|
PTZ Parameter |
|
|
Horizontal Rotation |
350° (±175°) 0.1°/s～100°/s |
|
Vertical Rotation |
180° (±90°) 0.1°/s～80°/s |
|
Preset Number |
User can set up to 255 presets (10 presets by IR remote) |
|
General Parameter |
|
|
Operation Systems |
Windows 10, Windows 11or higher; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.) |
|
Input Voltage |
DC 12V |
|
Input Current |
2.0A (Max.) |
|
Power Consumption |
24W (Max.) |
|
Store Temperature |
'-20°C to 60°C |
|
Store Humidity |
20%～90% RH |
|
Working Temperature |
'0℃ to 40°C |
|
Working Humidity |
20%～80% RH |
|
Warranty |
3 years |
