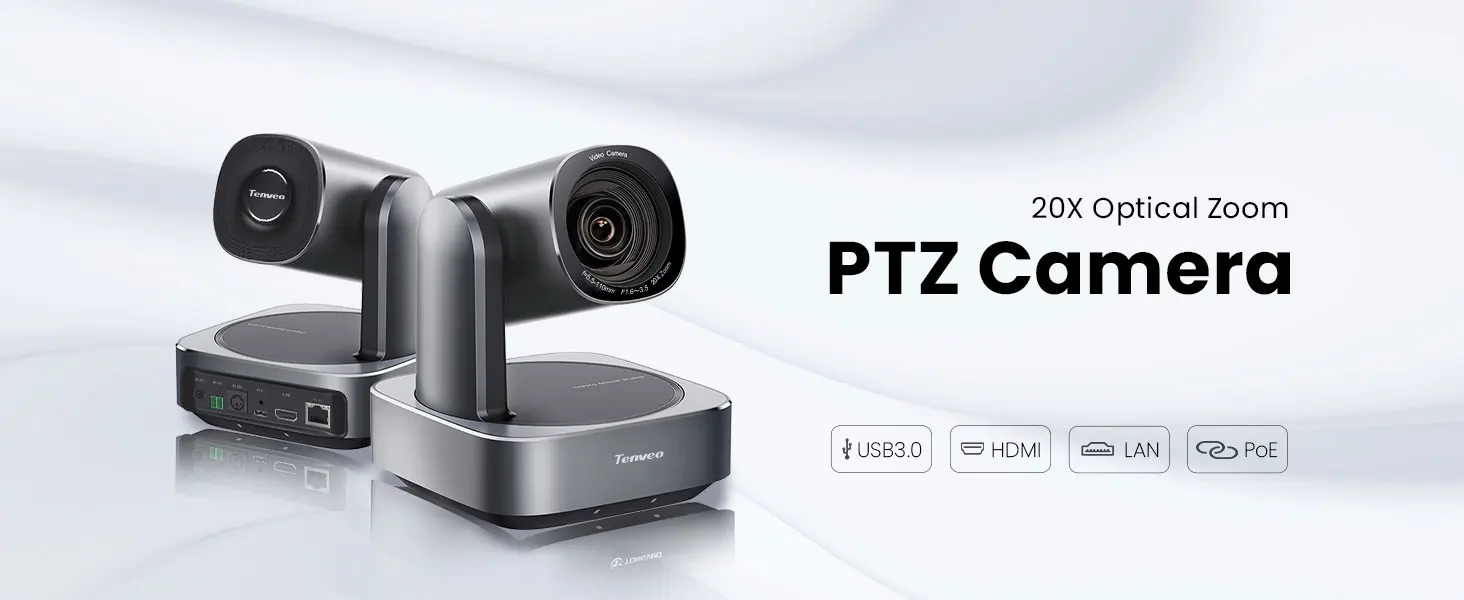

TEVO-VL20N-NDI PTZ Conference Camera HD1080P 60fps 20x Zoom
NDI PTZ Conference Camera HD1080P 60fps 20x Zoom USB3.0 IP Live Streaming Camera HDMI POE for Church Worship Education OBS VMix Red Dot Design Winner 20x Optical zoom USB3.0 HDMI RJ45 Video Output Sleek and intelligent design Plug & Play USB Connectivity 1080p@60fps Video Image Preset: 10...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved tevo-vl20n-ndi ptz conference camera hd1080p 60fps 20x zoom at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.
NDI PTZ Conference Camera HD1080P 60fps 20x Zoom USB3.0 IP Live Streaming Camera HDMI POE for Church
Worship Education OBS VMix Red Dot Design Winner

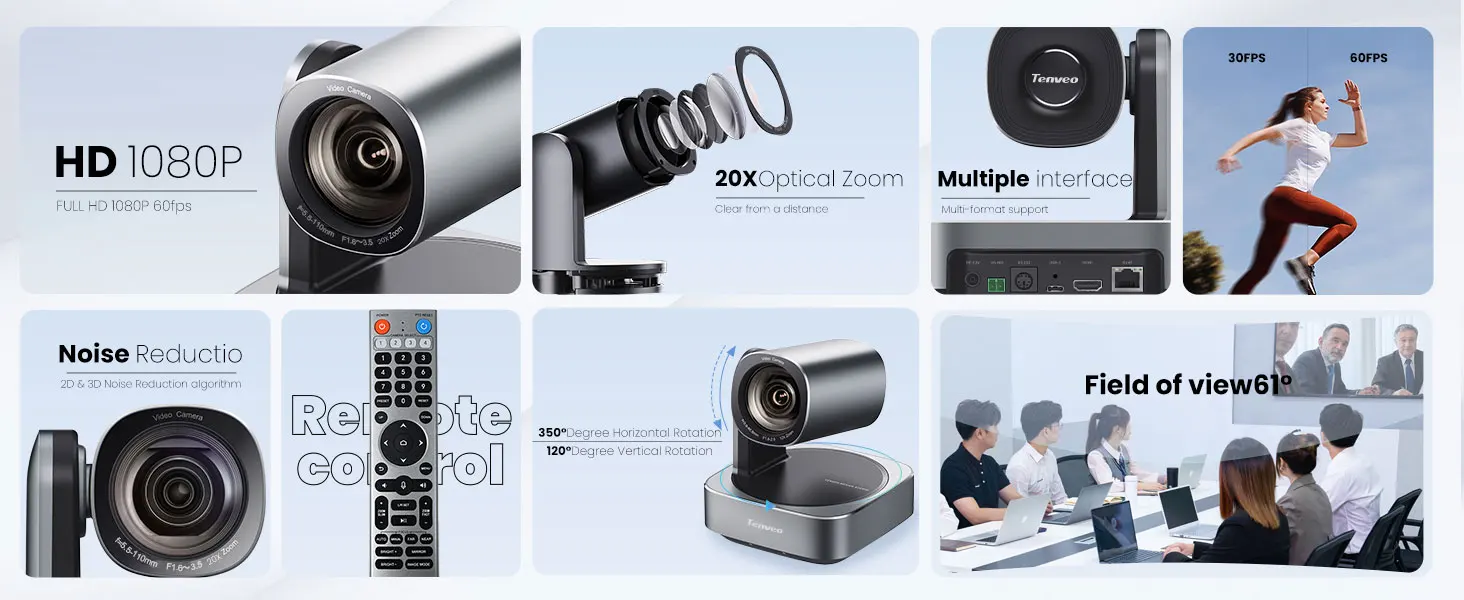

20x Optical zoom

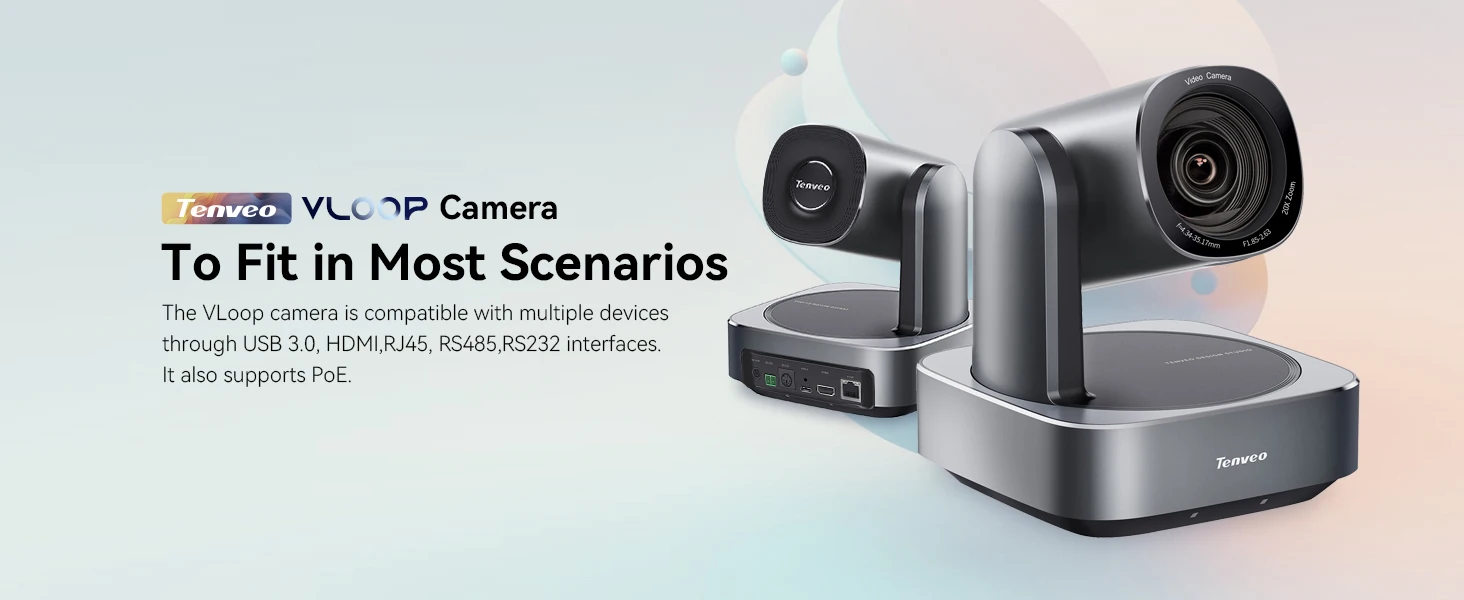

USB3.0 HDMI RJ45 Video Output
Sleek and intelligent design
Plug & Play USB Connectivity
1080p@60fps Video Image
Preset: 10 via IR remote setting (255 via RS232)
61° Wide field of view with no video distortion

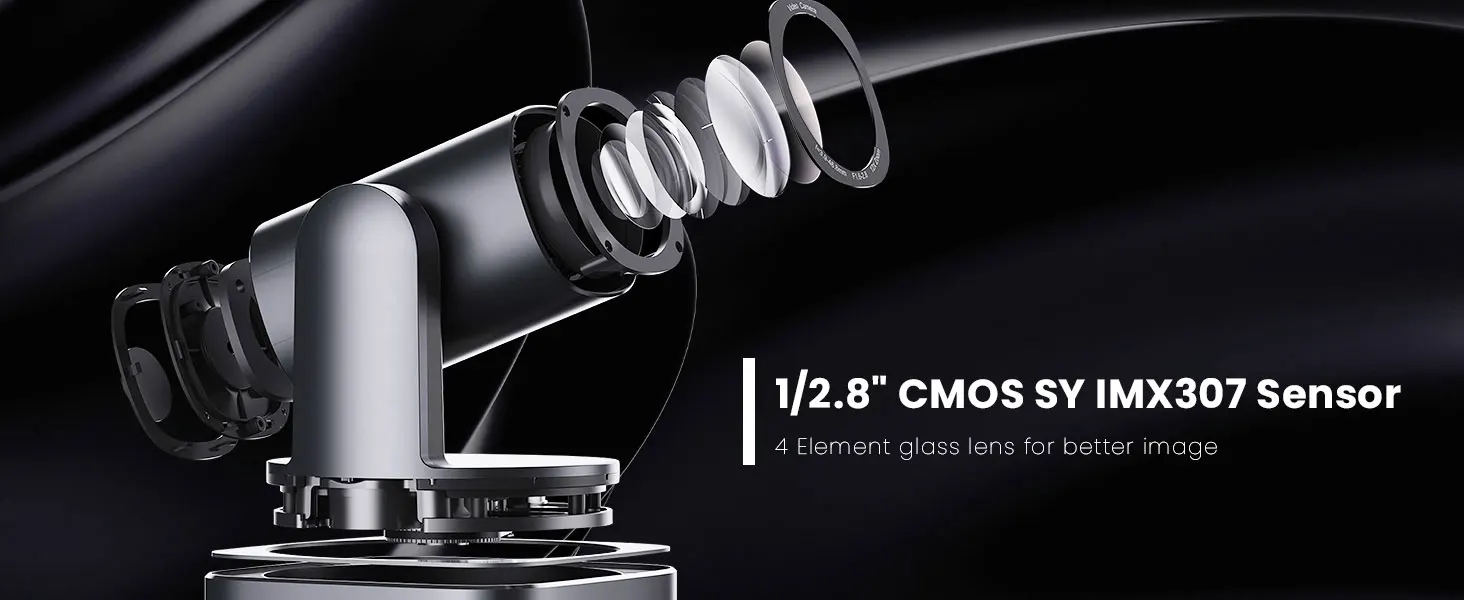

1/2.8 inch high quality, 2.38MP (16:9) CMOS sensor
Support H.264, H.265, MJPG, YUY2, NV12 Video Compression Format and LAN POE
Support RTSP, RTMP, ONVIF, GB/T28181 Network Protocol
Camera Parameters:
|
TEVO-VL20N USB3.0+HDMI+IP PEO PTZ CAMERA |
|
|
Item Name |
USB3.0/HDMI PTZ Camera with 20x Zoom |
|
Model No. |
TEVO-VL20N-NDI |
|
Image Sensor |
Sony IMX415 1/2.8" CMOS |
|
Effective Pixels |
2.38MP, 16:9 |
|
Lens |
f=4.34mm-35.17mm |
|
Aperture |
F1.6 ~ F2.8 |
|
Video Format |
HDMI(1080P@60/50/30/25fps,720P@60/50/30/25fps) |
|
USB3.0(1920*1080P@60fps, 1920*1080P@30fps,1280*720P@30fps,640*480P@30fps,320*240P@30fps |
|
|
Optical Zoom |
20x zoom |
|
Horizontal angle |
55.8°(W)-3.2°(T) |
|
Vertial angle |
39.5°(W)-5.1°(T) |
|
Diagonal angle |
61°(W)-3.64°(T) |
|
SNR |
>50dB |
|
Focus |
Auto/Manual |
|
Digital Noise Reduction |
2D & 3 DNR |
|
Exposure |
Auto/Manual |
|
Backlight Compensation |
Support |
|

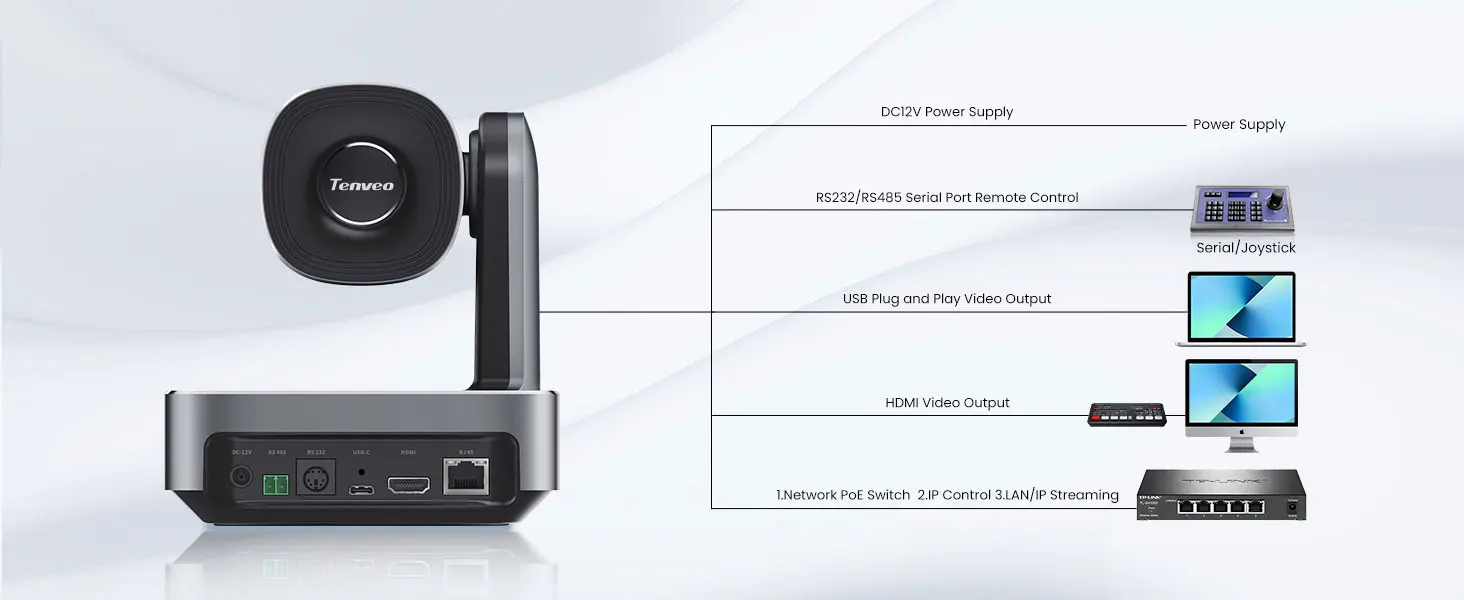

I / O Interface |
|
|
Video Interfaces |
HDMI, TYPE-C, RJ45 |
|
Video Compression Format |
H.264, H.265, MJPG, YUY2, NV12 |
|
LAN |
10M/100M adaptive Ethernet port, Support POE |
|
Network Protocol |
RTSP, RTMP, ONVIF, GB/T28181; Support VISCA Control Protocol |
|
Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate: 9600/4800/38400/2400 |
|
Control Interface |
RS232 (input & output), RS485, TYPE-C(UVC1.1) |
|
PTZ Parameter |
|
|
Pan/Tilt Rotation |
±175°,-90°～+90° |
|
Pan Control Speed |
0.1 -80°/sec |
|
Tilt Control Speed |
0.1-60°/sec |
|
Preset Number |
255 presets by Pelco-D, 32 presets by Pelco-P, 7 presets by Visca (10 presets by remote controller) |
|
General Parameter |
|
|
Operation Systems |
Windows 7, Windows 8.1, Windows 10; macOS™ 10.10 or higher, Linux (Require to support UVC.) |
|
Input Voltage |
12V |
|
Input Current |
1A(Max.) |
|
Power Consumption |
12W/5W(Max.) |
|
Store Temperature |
-10℃～+60℃ |
|
Store Humidity |
20%～90% |
|
Working Temperature |
-10℃～+50℃ |
|
Working Humidity |
20%～80% |
|
Dimension(W*H*D) |
171.6*192.6*171.6mm/ 260*217*197mm (before/ after packing) |
|
N.W. / G.W |
1.35kg/ 2.05kg (Net/ Gross weight) |
|
Accessory |
1*Camera; 1*USB Cable; 1*Power Adapter; 1*Ceiling Mount; 1*Manual |
|
Mfg. Warranty |
3 Years Parts & Labor |
