USB2.0 HD 360 Degree PTZ camera for Video Conference meeting

USB2.0 HD 360 Degree PTZ camera for Video Conference meeting

Model:TEVO-VHD10U
10x optical zoom
Sleek and intelligent design
Plug & Play USB2.0 Connectivity
Crystal clear HD1080P image quality
Preset: 9 via IR remote setting (256 via RS232)
Wide field of view with no video distortion
1/2.9 inch high quality, 2.1MP (16:9) CMOS sensor
Superior quality with Full Glass Lens Material
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Compatible with most leading video conferencing software and platform
Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth

Send Inquiry
TEVO-VHD10U
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved usb2.0 hd 360 degree ptz camera for video conference meeting at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.



2025 Full HD TENVO-VHD10U USB3.0 HDMI Live View Conference PTZ Camera

* FHD PTZ Conference Camera.

* Capture every detail and provide an immersive experience, 10x optical zoom with HDMI and USB3.0 interfaces

* Smooth PTZ rotation. 350(±175) horizontally and 180(±90) vertically
* Multiple connections choices-USB3.0 and HDMI. Effective distance-using recommended: USB-15m/49.21ft, HDMI-30m/98.42ft.


Product Description
Advantages

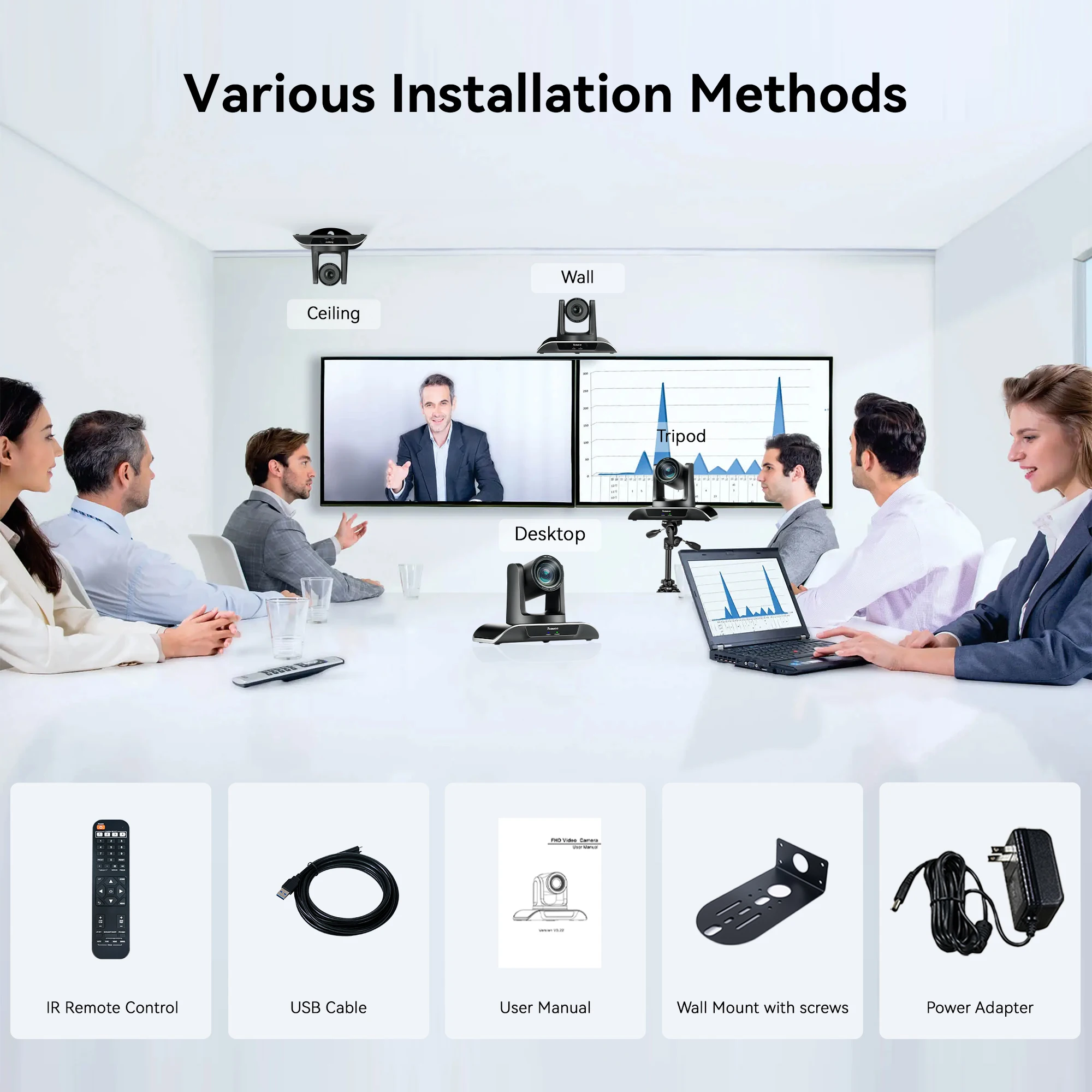

Application Scenarios & Installations
Product Packaging & Shipping
Company Profile

 Our advantage:

 Reliable OEM manufacturing services from Tenveo

 Top contract manufacturers for Video and Audio

 ISO-certified factory

 Low MOQ manufacturers with quality control

 Competitive pricing bulk production suppliers


Product Parameters
Model No.
TEVO-VHD10U
Image Sensor
1/2.8''SONY CMOS
Effective pixels
2.38 mega pixel
Lens
f=5.76-46.09mm
Aperture
F1.8-2.6
Video Format
1080p@60/50/30/25fps, 720p@60/50/30/25fps
Optical zoom
10X optical zoom
Horizontal Angle
54.7°(W)-6.8°(T)
Vertical Angle
30.8°(W)-3.8°(T)
Diagonal Angle
62.8°(W)-7.8°(T)
Backlight Compensation
Support
PTZ Parameter
Pan/Tilt Rotation
±175°, -90°~+90°
Pan Control Speed
0.1°/s～100°/s
Tilt Control Speed
0.1-80°/Sec
Preset Number
255 presets by Pelco D, 32 presets by Pelco-P, 7 presets by Visca(10 presets by remote controller)
SNR
>50dB
Focus
Auto/Manual
General Parameter
Operation Systems
Windows 7/8.1/10/11; Andriod, Mac OS 10.10 or higherLinux(Require to support UVC)
Input Voltage
DC 12V
Input Current
1.0A(max.)
Power Consumption
13W(max.)
Store Temperature
-10℃~+60℃
Store Humidity
20%~90%
Working Temperature
-10℃~+50℃
Working Humidity
20%~80%
Dimension
260*217*197mm(After Packing)
N.W./G.W.
1.5kg/2.5kg
Accessory
1*camera, 1*USB cable, 1* powder adapter, 1*wall mount, 1* manual
Warranty
3 years

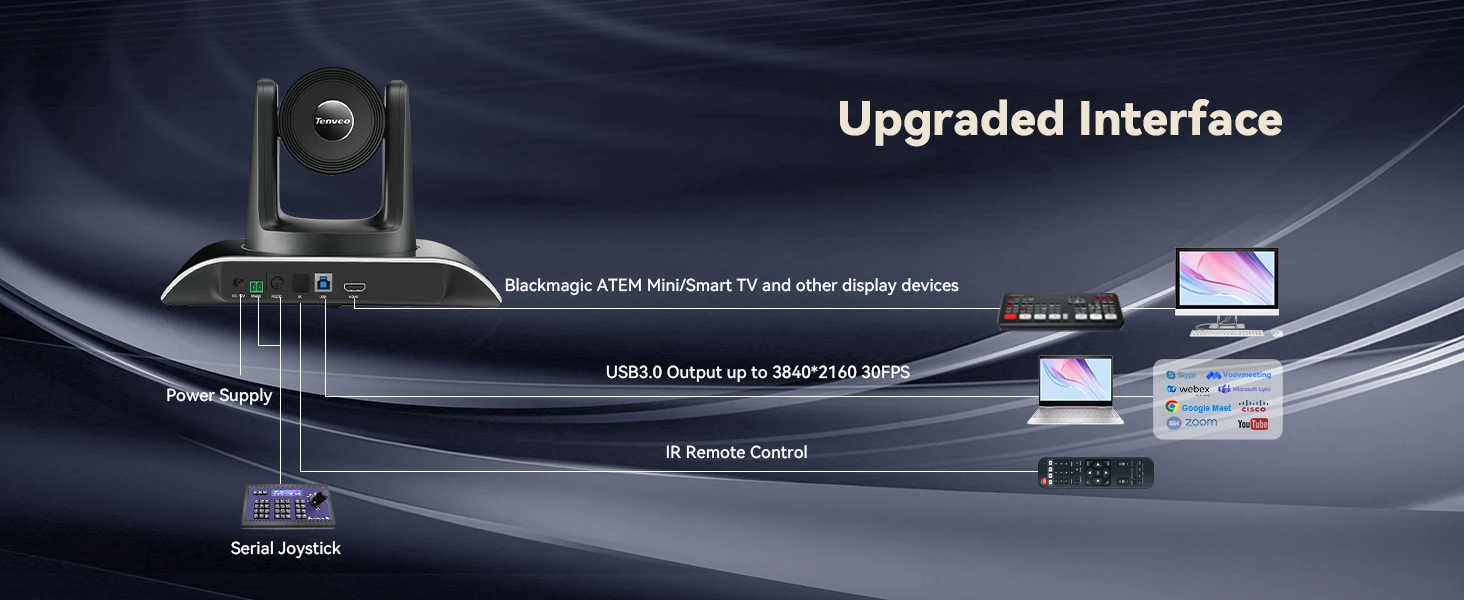

I/O Interface
Video interfaces
HDMI, USB3.0
Video Compression Format
H.264, H.265, MJPG, YUV2
Control Protocol
VISCA/Pelco-D, Pelco-P; Baud Rate: 9600/4800/38400/2400
Control Interface
RS232(Input & Output), RS485, Type-C(UVC1.1)
Digital Noise Reduction
2D&3D Noise Reduction
Exposure
Auto/Manual
