USB3.0 SDI Telemedicine Camera
Product No.:TEVO-NV20A
20x optical zoom
Sleek and intelligent design
USB, HDMI, SDI 3video outputs
Crystal clear HD1080P image quality
Accurate, smooth and silent PTZ Movement

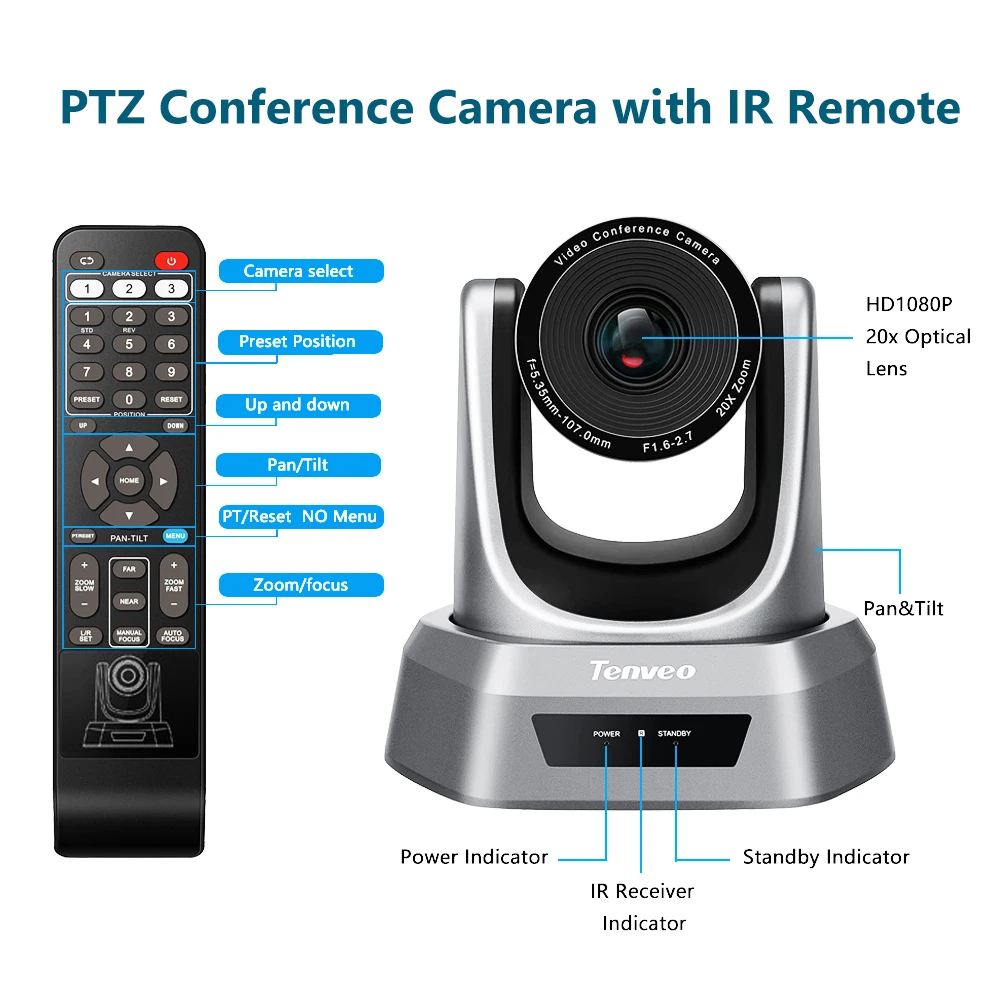

Preset: 9 via IR remote setting (256 via RS232)
Superior quality with Full Glass Lens Material
54.7 ° wide field of view with no video distortion
1/3 inch high quality, 2.38MEGA PIXEL (16:9) CMOS sensor
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Compatible with most leading video conferencing software and platform
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved usb3.0 sdi telemedicine camera at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.
HD PTZ laptop camera for video conference -- TEVO-NV20A
2.38 MP PTZ Video Conference Camera
20X Optical Zoom PTZ Camera TENVEO Video Conference Room USB 1080P Camera System for Business Meeting Church Worship Services Online Learn, Works with Zoom, Skype OBS Easy to Set Up
20x optical zoom
Sleek and intelligent design
Plug & Play USB2.0 SDI HDMI Connectivity
Crystal clear HD1080P image quality
Preset: 10 via IR remote setting (255 via RS232)
62.6° Wide field of view with no video distortion
1/2.9 inch high quality, 2.38MP (16:9) CMOS sensor
Superior quality with Full Glass Lens Material
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Compatible with most leading video conferencing software and platform
Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smoot
Product parameters:
Product No. | TEVO-NV20A |
Image Sensor | 1/3 inch HD Color CMOS |
Effective pixel | 2.38 mega pixel(16:9) |
Horizontal Resolution | 1080P60/50/30/25, 1080i60/50, 720P60/50 |
Signal standard | NTSC/PAL |
Zoom | 20x optical zoom |
Minimum luminance | 0.5Lux at F2.0 |
Focal length | F=5.5mm(wide)-110(tele) |
Horizontal Angle | Near-end 54.7°～Far-end 3.3° |
Gain control | Auto |
Focus | Auto |
White balance | Auto |
SNR ratio | ≥50dB |
Shutter speed | 8 to 1/10000s (auto) |
Preset position | IR remote control supports 9 presets, PELCO Protocol supports 256 presets |
Pan/Tilt movement range | Pan: ±175°(max speed 80°/S), Tilt: -35°~﹢55°(max speed 60°/S) |
Control terminal | USB,RS-232, RS485 |
Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
Video output | USB, HDMI, SDI |
Video Compression Format | MJPG |
Noise Reduction | 2D/3D |
Work temperature | -10°C-~50°C |
Storage temperature | -20°C~60°C |
Baud rate | 38400/9600bps |
Decoder | Built-in |
Address set | 1~256 |

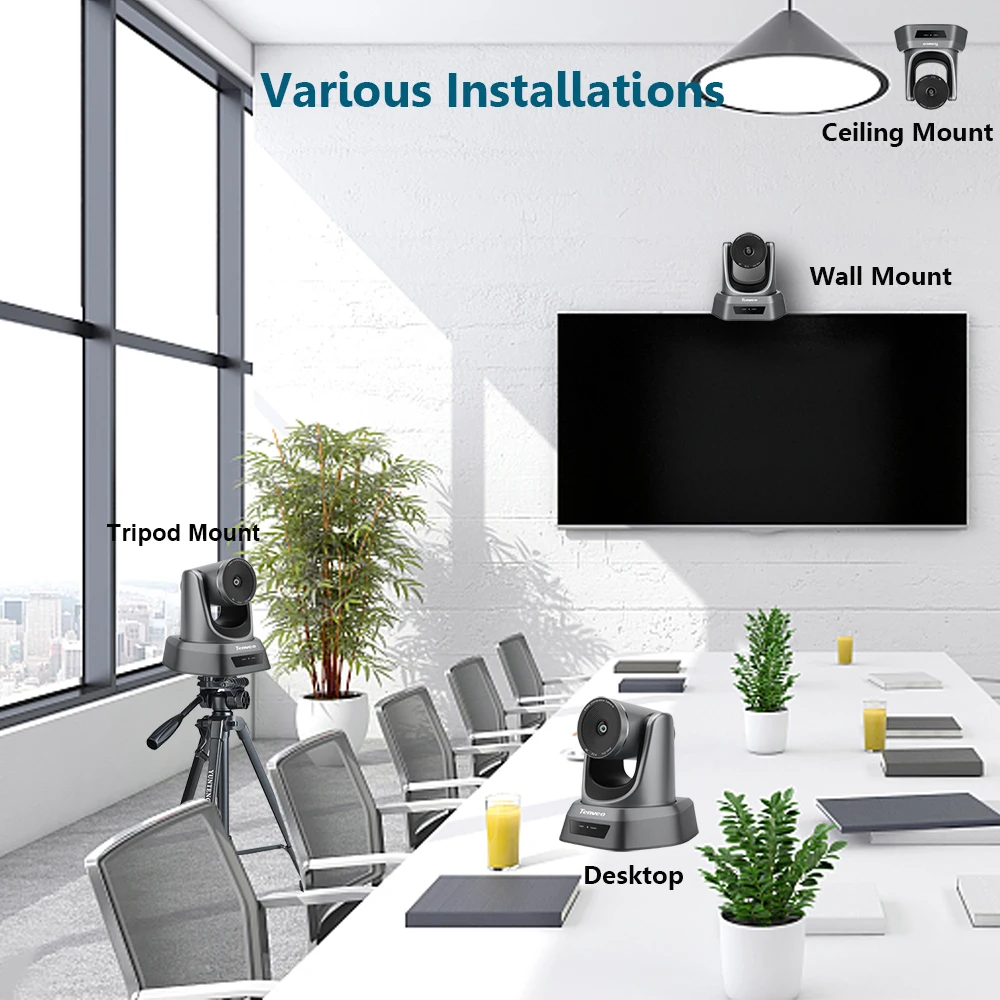

Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
Power supply | DC12V/ 2A |
Power consumption | 12 W |
Net weight/Gross weight | 1.5kg/2.85g |
Dimension(LXWXH) | 260*175*180 mm /296*255*218mm (before / after packing) |

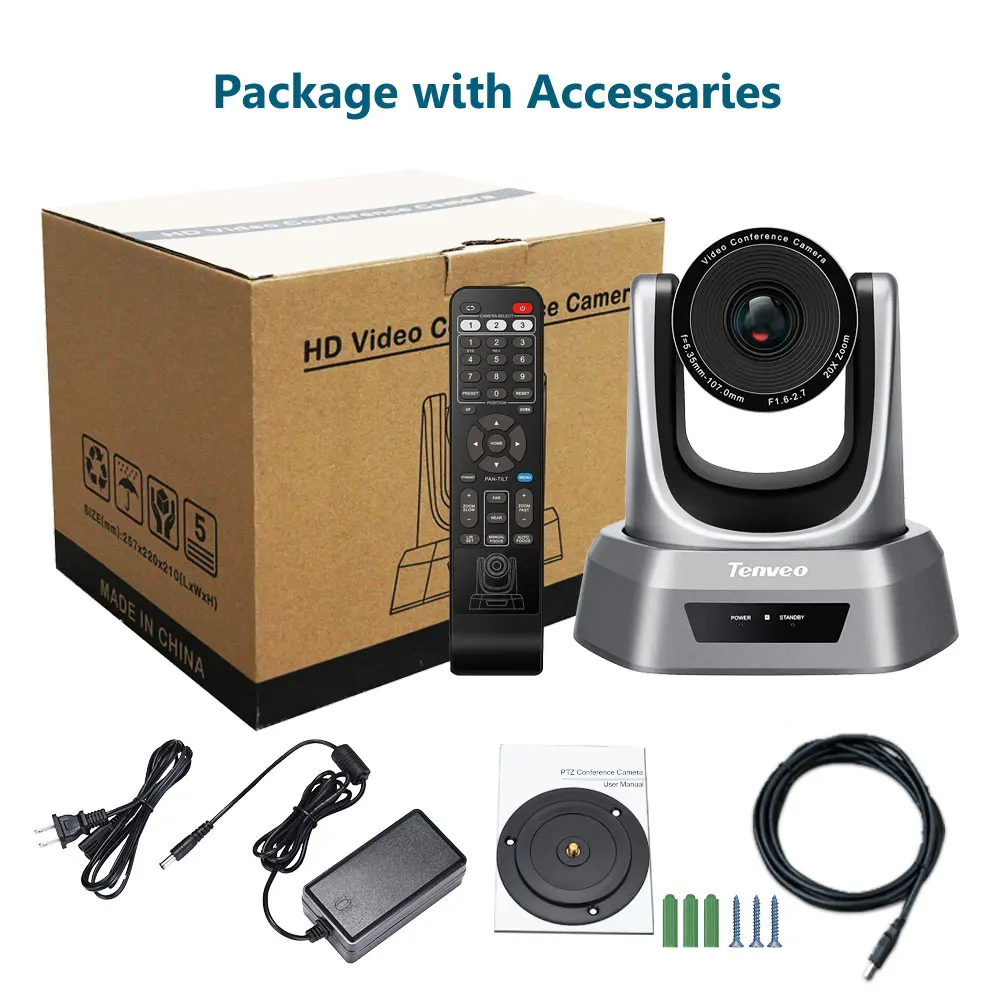

Accessories | DC 12V Power adaptor, IR remote control, Manual, USB2.0 cable, Ceiling brackets & screws. |
