UV MAX Auto Tracking NDI SDI USB IP 12x 20x 30x PTZ Conference Camera

Name: UV MAX Auto Tracking NDI SDI USB IP 12x 20x 30x PTZ Conference Camera Manufacturers China - Wholesale Price Technology - Tenveo
Brand: Tenveo
SKU: 275601468

Tenveo 1080P Auto Tracking
SDI USB IP HDMI PTZ Conference Camera
Equipped with a Sony 1/2.8" CMOS sensor and 2.07 megapixels
Delivers true 4K clarity with lifelike color fidelity and sharpness

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved uv max auto tracking ndi sdi usb ip 12x 20x 30x ptz conference camera at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.

Product descriptions from the supplier

Product Description

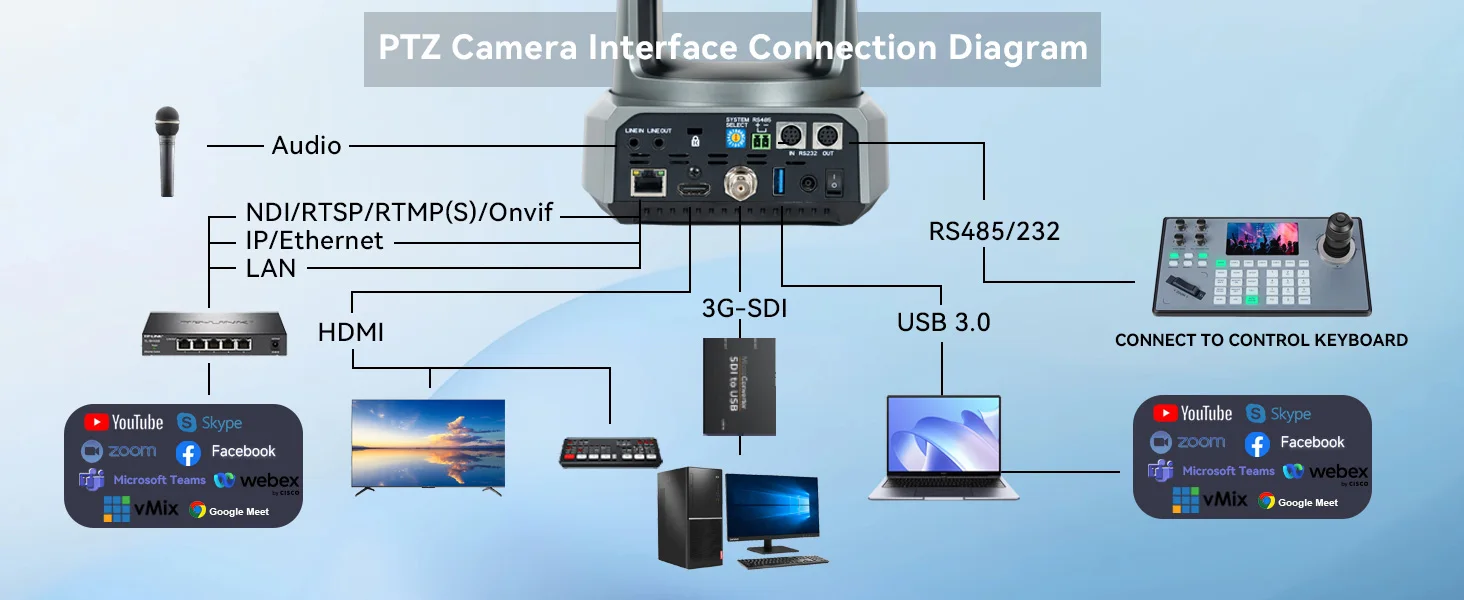

12X/20X/30X Optical + 16X Digital Zoom AI Auto Tracking PTZ Camera with SDI/HDMI/USB3.0/LAN Interfaces, PoE supports, surprises you with a real color, sharp and crystal video quality. Support SRT, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast and other network protocols. Meanwhile, LINE IN and LINE OUT interfaces can be connected to audio devices, supporting simultaneous audio and video
streaming(audio device is not included), allowing you to meet all your streaming needs.

Detailed Images

The AI PTZ Camera with Auto-Tracking supports human shape tracking based on advanced AI algorithm. Through face recognition, it can accurately determine the location of people, realize automatic tracking and automatic frame selection.

This makes it ideal for capturing live events, such as church services worship events, sporting events, live concerts, video production or large conferences.

Application Scenarios & Installations

product-1-1

Packing & Delivery

product-1-1

Model No.	UV MAX 612A	UV MAX 620A	UV MAX 630A
Sensor	1/2.8''
Effective Pixels	2.07MP
Optical Zoom	12x optical zoom	20x optical zoom	30x optical zoom
Lens	f=3.5mm ~ 42.3mm	f=4.42mm ~ 88.5mm	f=4.42mm ~ 132.6mm
Aperture	F1.8 ~ F2.8	F1.8 ~ F2.8	F1.8 ~ F2.8
Horizontal Angle	72.29° ~ 6.74°	64.98° ~ 3.47°	63.7° ~ 3.28°
Vertical Angle	43.43° ~ 3.83°	38.41° ~ 1.98°	37.1° ~ 1.68°
Diagonal Angle	80.71° ~ 7.65°	72.88° ~ 3.95°	72.5° ~ 3.63°
Video Signals	1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080I60, 1080P59.94, 1080P50, 720P60, 720P59.94, 720P50
Digital Zoom	16X
Video Output	USB 3.0, HDMI, RJ45, SDI
Signal Standard	NTSC/PAL
Control Interface	RS232, RS485, USB, NET
Shutter	1/30s ~ 1/10000s
White Balance	Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital Noise Reduction
Baud Rate	2400/4800/9600/19200/38400/57600/115200
Control Protocol	VISCA, Pelco-D,Pelco-P
USB Protocol	UVC 1.1
Minimal Illumination	0.5 Lux @ (F1.8, AGC ON)
SNR	≥55dB

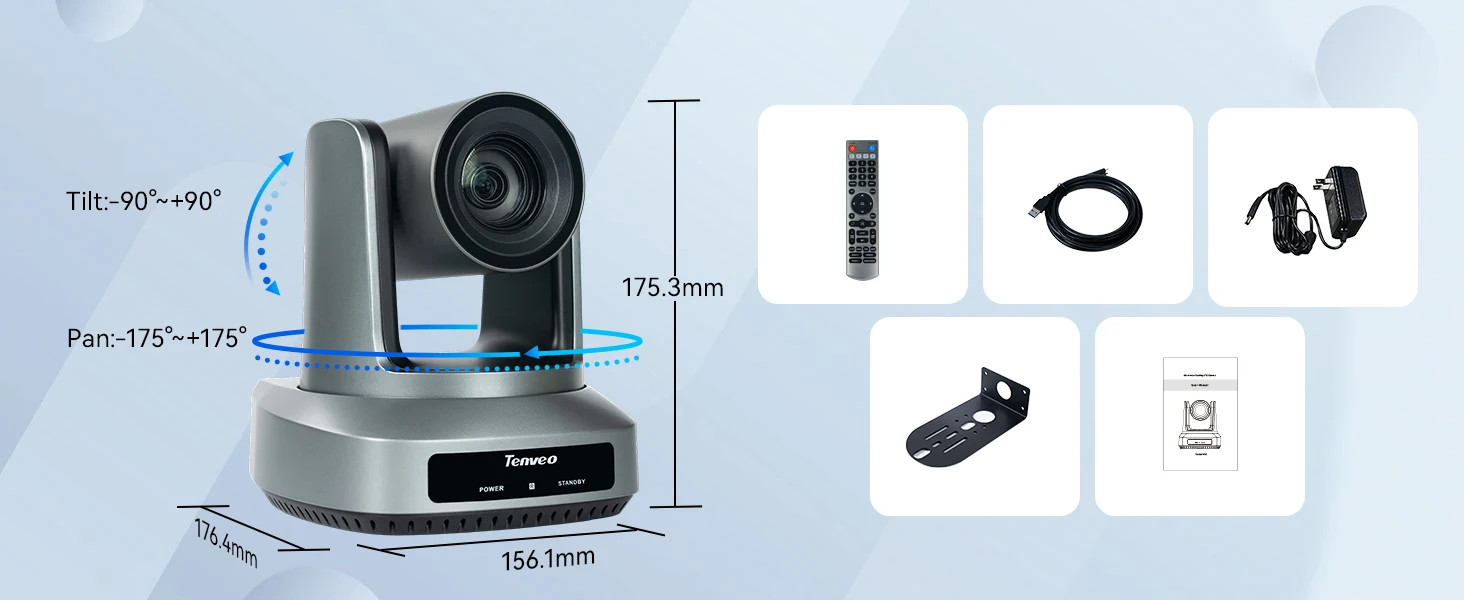

Horizontal Rotation	350° (±175°) 0.1°/s～100°/s
Vertical Rotation	180° (±90°) 0.1°/s～80°/s
H & V Flip	Support
Image Freeze	Support
PoE	Support
Number of Preset	255
Preset Accuracy	0.1°
Video Encoding Format	H.264/H.265/MJPG
Video Stream	Main Stream, Sub Stream
Main Stream Resolution	1920x1080,1280x720,1024x576,etc.
Sub Stream Resolution	1280x720,1024x576,720x576,etc.
Video Bit Rate	32Kbps ~ 20480Kbps
Bit Rate Type	Variable Rate, Fixed Rate
Frame Rate	1fps ~ 60fps
Audio Compression	AAC
Audio Bit Rate	96Kbps, 128Kbps, 256Kbps
Network Protocol	NDI \|HX2,SRT,TCP/IP, HTTP, RTSP, RTMP(S), Onvif, DHCP, GB/T28181,Multicast;Support FULL ND
HD Output	1xHDMI 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
LAN	1xRJ45:10M/100M Ethernet Interface
Audio Interface	1-ch: 3.5mm Audio Interface, Line In
USB	1xUSB3.0: Type B female jack
Communication Interface	1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack	JEITA type (DC IN 12V)
Power Supply	DC 12V/2A
Power Consumption	18W
