Video Hd Educational Camera
SDI，HDMI/USB output
1/2.8" Exmor CMOS
2.38 mega pixel
FHD1080P 20X optical zoom
Pan: 0-340° Tilt :0°~120°
RS-232, RS-485,IR remote control.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved video hd educational camera at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.

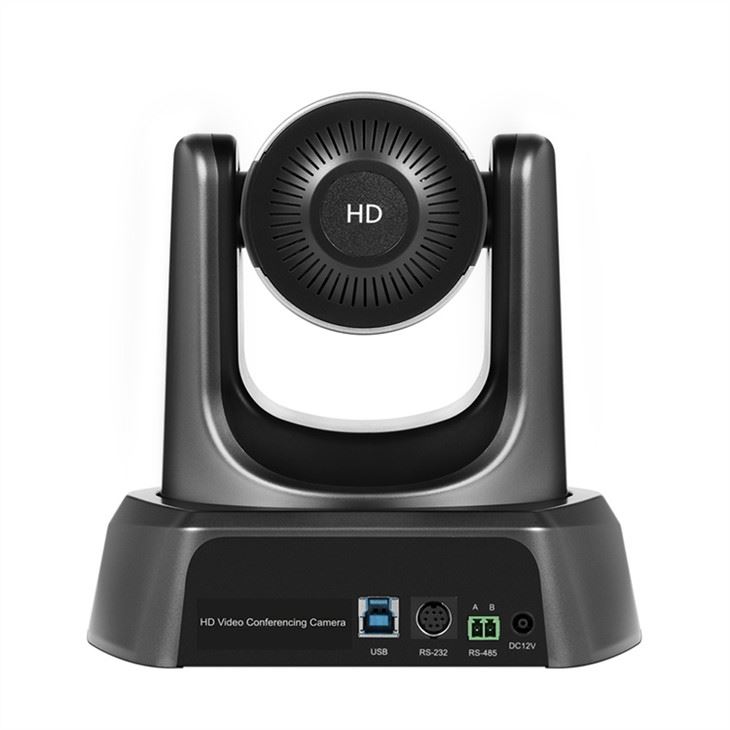

TEVO-NV20U Video Hd Educational Camera
Camcorder type :Video Camera
Video Capture Resolution : 1080p
Connectivity : USB
Zoom Type : Optical
Optical Zoom : 20x zoom
Digital Zoom :12x zoom
Wide-Angle :55 degree
【High quality Full HD images】 Professional Full HD 1080p Conference Camera with optical zoom for conference rooms of 40/60/200 square meters, very one in the room can clearly seen in high quality professional video.
【Improved PTZ operation】 Use the remote control or software to control the PTZ function, the camera can move precisely and fluidly, it supports automatic zoom. Preset function: The VISCA control protocol (remote control) supports 9 preset positions, the Pelco-D / P (keyboard controller) control protocol supports 255 preset positions, a click returns to the preset point.
【Plug and Play USB】 Connect the webcam and PC / laptop with the USB cable supplied, so anyone in the office can easily configure and control video meetings. Remote control tips: press the number (1-9) directly to call the reserved, faster and fluid preset.
【Universal compatibility】 Recommend to use Zoom, Microsoft Lync, Cisco WebEx and Skype for Business as conference software, you can adjust video capture parameters into the software to improve video quality and liquidity, how to adjust video resolution, video compressor (recommended h .264 or mjpg) and frame rate. Compatible also with video editing software and live streaming such as OBS, XSplit, StreamLabs, Mixer.
【Contents of packaging and warranty】 1 * PTZ camera, 1 * IR remote control (without battery), 1 * 12V DC power supply, 1 * USB cable (3M), 1 * Ceiling bracket and screws, 1 * Manual.
Camera Parameters:
Product No. | TEVO-NV20U |
Image Sensor | 1/2.9″ CMOS |
Effective pixel | 2.1 mega pixel（16:9） |
Horizontal Resolution | 1080p 30/25, 720p 30/25 |
Signal standard | NTSC/PAL |
Zoom | 20x optical zoom |
Focal length | f=5.35-107.0mm F1.6-F2.7 |
FOV | 62.6°(W)-4.05°(T) |
Gain control | Auto/manual |
Focus | Auto/manual |
SNR ratio | ≥50dB |
Wide dynamic | D-WDR |
Shutter speed | 8to1/ 10000s(auto) |
Preset position | Remote-controller supports 10 presets, |
Pan/Tilt movement range | Pan: 350°(max speed 100°/S), Tilt: 90°(max speed 80°/S) |
Control terminal | RS-232, RS-485 |
Control Protocol | VISCA, PELCO-D, PELCO-P（RS-232, RS-485） |
Video output | USB |
Noise Reduction | 2D/3D |
Work temperature | -10°C-~50°C |
Storage temperature | -20°C~60°C |
Baud rate | 9600/38400bps |
Decoder | Built-in |
Address set | 1~64 |
Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
Power supply | DC12 V/ 2A |
Power consumption | 12 W |
Net weight/Gross weight | 1.5kg/2.0kg(before / after packing) |
Dimension(LXWXH) | 181*184*174mm/257*220*200mm(before / after packing) |
Accessories | DC 12V Power adaptor, IR remote control, Manual, USB 2.0 cable, Ceiling brackets & screws. |
What's in the Box?
1 x Camera
1 x DC/12V power adaptor
1 x IR remote control
1 x Manual
1 x USB cable
1 x Brackets & screws
1 x Warranty
1 xCertificate of qualification
