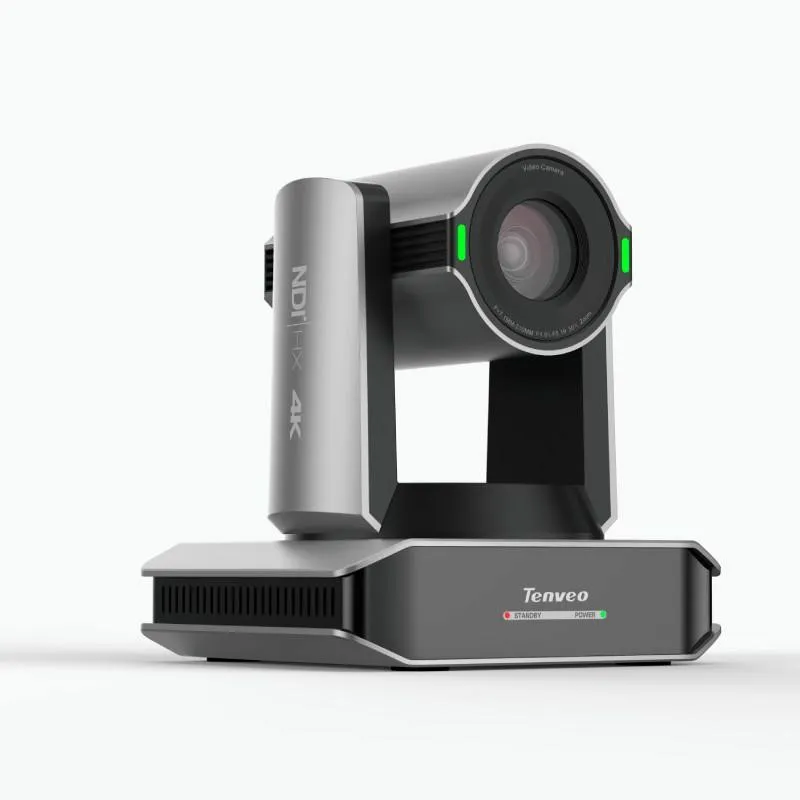

Live Broadcast 4K NDI HX3 Camera 60FPS 30X Optical Zoom PoE HDMI SDI USB 4K60fps PTZ Camera For Live Streaming
Tenveo X60 is a professional 4K60fps PTZ camera
It combines advanced Al-powered tracking with three flexible modes
30x optical zoom plus 16x digital zoom
4K60fps over HDMI, 4K30fps via USB3.0/IP/NDI, and 1080p60fps over 3G-SDI
Industry-standard protocols including NDI|HX3, Dante AV-H, and Free-D, X60 is an all-in-one solution for dynamic conference rooms, live events, and virtual production studios.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved Live Broadcast 4K NDI HX3 Camera 60FPS 30X Optical Zoom PoE HDMI SDI USB 4K60fps PTZ Camera For Live Streaming at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.
Live Broadcast 4K NDI HX3 Camera 60FPS 30X Optical Zoom
Support PoE HDMI SDI USB 4K60fps PTZ Camera for Live Streaming
Application Scenarios & Installations
|
Model No.
|
TEVO-X60
|
||||||
|
Sensor
|
8.42MP
|
||||||
|
Video Signals
|
HDMI: 4KP60fps, 4KP59.94fps, 4KP50fps, 4KP30fps,
4KP29.97fps, 4KP25fps, 1080P60fps, 1080P59.94fps...
|
||||||
|
3G-SDI: 1080P60fps, 1080P50fps,
1080P30fps, 1080P29.97fps, 1080P59.94fps, 1080P25fps; 1080I60fps, 1080I50fps, 1080I59.94fps; 720P60fps,
720P59.94fps USB3.0:
H.264: max to 2160P@30fps H.265: max to 2160P@30fps |
|
|
|||||
|
MJPEG: max to 2160P@30fps YUY2: max to 1080P@30fps
|
|
|
|||||
|
Optical Zoom
|
30x optical zoom
|
||||||
|
Digital Zoom
|
16x
|
||||||
|
Lens
|
f=7.1mm~210mm
|
||||||
|
Aperture
|
F1.61~F5.19
|
||||||
|
Horizontal Angle
|
59.6° ~ 2.5°
|
||||||
|
Vertical Angle
|
34.6°~1.4°
|
||||||
|
Diagonal Angle
|
66.7°~2.9°
|
||||||
|
AI Support
|
Yes
|
||||||
|
AI Mode
|
Single Person Tracking/Multiple Person Tracking/Area Tracking
|
||||||
|
Minimum Illumination
|
1/30s~1/10000s
|
||||||
|
White balance
|
Auto/Manual/Indoor/Outdoor/Specific Color Temperature/One-push
|
||||||
|
Backlight Compensation
|
Yes
|
||||||
|
Digital Noice Reduction
|
3D DNR
|
||||||
|
SNR
|
≥55dB
|
||||||
|
Exposure
|
Auto/Manual/Shutter Priority/Aperture Priority/Brightness Priority
|
||||||
|
Foucs
|
Auto/Manual
|
||||||
|
Video Encoding Format
|
H.264/H.265/MJPEG/YUY2
|
||||||
|
Pan Rotation
|
350°(±175°)
|
||||||
|
Tilt Rotation
|
180°(±90°)
|
||||||
|
Auto Flip
|
No
|
||||||
|
Image Freeze
|
Yes
|
||||||
|
POE
|
Yes
|
||||||
|
Preset Positions
|
Remote: 10; Serial Port: 255
|
||||||
|
Preset Accuracy
|
0.1°
|
||||||
|
H & V Flip
|
Support
|
||||||
|
Image Freeze
|
Support
|
||||||
|
PoE
|
Support
|
||||||
|
Number of Preset
|
255
|
||||||
|
Preset Accuracy
|
0.1°
|
||||||
|
Preset Call-up Speed
|
Pan 0.1°/s~100°/s; Tilt 0.1°/s~80°/s
|
||||||
|
Network
|
|
|
|||||
|
Video Compression
|
H.264/H.265/MJPEG
|
3840x2160,1920x1080,1280x720,etc.
|
|
|
|||
|
Video Stream
|
Primary Stream, Secondary Stream
|
||||||
|
Main Stream Resolution
|
3840*2160, 1920*1080, 1280*720, 1024*576, etc.
|
||||||
|
Sub Stream Resolution
|
720*480, 320*240, etc.
|
||||||
|
Bit Rate
|
32kbps~51200kbps(Secondary: 32kbps~20480kbps)
|
||||||
|
Bit Rate Type
|
VBR, CBR
|
||||||
|
Frequency
|
50Hz/60Hz
|
||||||
|
Frame Rate
|
50Hz: 1fps~50fps 60Hz: 1fps~60fps
|
||||||
|
Audio Compression
|
AAC
|
||||||
|
Audio Bit Rate
|
1xRJ45:10M/100M/1000M Ethernet Interface
|
||||||
|
Network Protocol
|
Dante AV-H, NDI®|HX3(Optional), Free-D, SRT, TCP/IP, HTTP, RTSP,
RTMP(s), ONVIF, DHCP, Multicast, etc.
|
||||||
|
USB
|
|
|
|||||
|
Support operating system
|
Windows/macOS/Android/Linux
|
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m,
Protocol: VISCA network use only 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P |
|
|
|||
|
Color Space compression
|
YUY2/H.264/MJPEG/H.265
|
||||||
|
Video Format
|
H.264: max to 2160P@30fps H.265: max to 2160P@30fps
MJPEG: max to 2160P@30fps YUY2: max to 1080P@30fps
|
||||||
|
USB Video Communication Protocol
|
UVC 1.1~1.5
|
||||||
|
UVC PTZ Control
|
Yes
|
||||||
|
I/O Interfaces
|
|
|
|||||
|
HD Output
|
1*HDMI, 1*SDI, 1*USB 3.0
|
|
|
||||
|
Network interface
|
1*RJ45(Supports PoE)
|
|
|
||||
|
USB Interface
|
1*USB3.0, Type-B Port
|
|
|
||||
|
Audio Interface
|
1* Line In, 3.5mm Audio Jack 1* Line Out, 3.5mm Audio Jack
|
|
|
||||
|
Communication Interface
|
1*RS232 In: 8-pin mini-DIN, Max Distance: 30m,
VISCA/Pelco-D/Pelco-P Protocol 1*RS232 Out:
8-pin mini-DIN, Max Distance: 30m,
VISCA Protocol 1* RS485: 2-pin Phoenix Terminal, Max Distance: 1200m, VISCA/Pelco-D/Pelco-P Protocol
|
|
|
||||
|
SD Card
|
NO
|
|
|
||||
|
Restore Button
|
Yes
|
|
|
||||
|
Power Interface
|
JEITA Type (DC IN 12V)
|
|
|
||||
|
General
|
|
|
|||||
|
Input Voltage
|
DC12V
|
|
|
||||
|
Input Current
|
2A
|
|
|
||||
|
Operating Temperature
|
0°C~40°C
|
|
|
||||
|
Operating Humidity
|
20%~80%RH
|
|
|
||||
|
Power Consumption
|
24W(Max.)
|
|
|
||||
|
Dimension(Beofore/After Package)
|
201*184*221mm/285*217*197mm
|
|
|
||||
|
Net/Gross Weight
|
2.4kg/3.8kg
|
||||||
