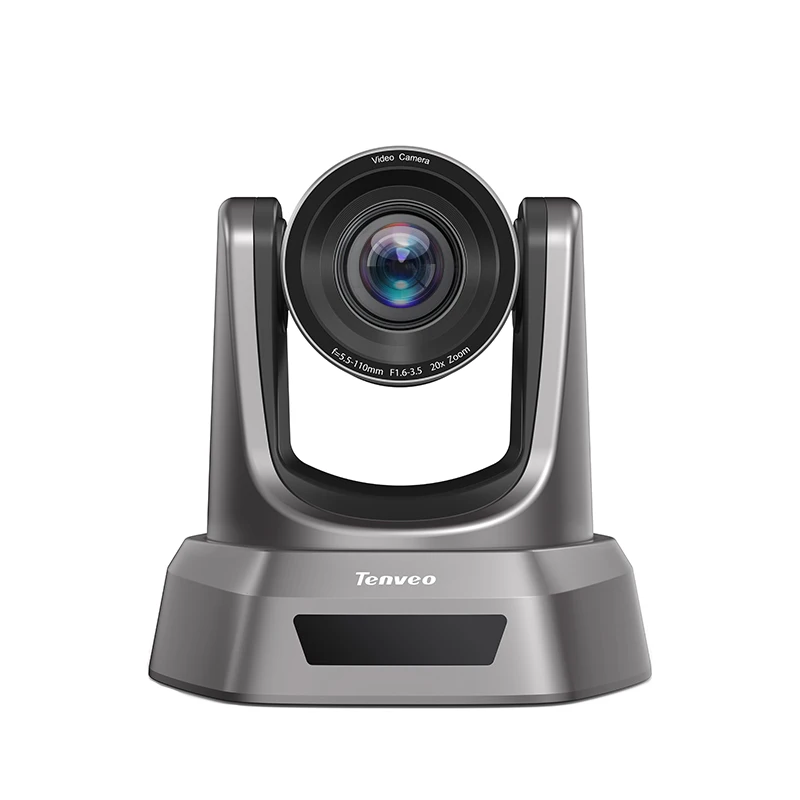

Rofessional Camera Tenveo-NV20H 1080p/720p 360 Degree PTZ Camera 20x Zoom Video Conference Camera For Online Meeting
Products Description Main Features * 20X optical zoom *1080p@60/50/30/25fps,720p@60/50/30/25fps * Preset: 9 via IR remote setting (256 via RS232) * Wide field of view with no video distortion * 1/2.8 inch high quality, 2.38MP (16:9)CMOS sensor * Superior quality with Full Glass Lens Material...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved rofessional camera tenveo-nv20h 1080p/720p 360 degree ptz camera 20x zoom video conference camera for online meeting at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.
Products Description
Main Features
* 20X optical zoom *1080p@60/50/30/25fps,720p@60/50/30/25fps
* Preset: 9 via IR remote setting (256 via RS232)
* Wide field of view with no video distortion
* 1/2.8 inch high quality, 2.38MP (16:9)CMOS sensor
* Superior quality with Full Glass Lens Material
*HDMI , USB Video Output
* Support ceiling mount, wall mount and tripod mount (Reverse mountable)
* 2D and 3D NR for best video quality in different lighting conditions
* Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Product Paramenters
|
Model |
NV20H conference IP camera |
|
Sensor |
1/2.8''SONY CMOS |
|
Effective pixel |
2.38 mega pixel |
|
Video signals |
1080p@60/50/30/25fps,720p@60/50/30/25fps |
|
Zoom |
20x optical zoom |
|
Lens |
f=5.5-110mm |
|
Aperture |
F1.6-3.5 |
|
Horizontal angle |
55.8°(W)-3.2°(T) |
|
Vertial angle |
32.2°(W)-1.8°(T) |
|
Diagonal angle |
61°(W)-3.64°(T) |
|
Video output |
USB,HDMI |
|
Video encoding format |
H.264, H.265, MJPG, YUY2 |
|
Video resolution |
1080P (1920 *1080) etc |
|
Siginal standard |
NTSC/PAL |
|
Preset position |
User can set up to 64 presets (IR remote 10 presets) |
|
Control terminal |
RS-232 (input only), RS-485, USB |
|
Shutter |
1/30s～1/10000s, auto |
|
Baud rate |
2400/4800/9600/38400bps |
|
Control protocol |
VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
|
USB protocol |
UVC1.1 |
|
Minimal Illumination |
0.1Lux |
|
SNR |
350° (±175°) 0.1°/s～100°/s |
|
Horizontal rotation |
≥50dB |
|
Vertical rotation |
180°(±90°)0.1°/s～80°s |
|
Power supply |
DC 12V/2A |
Details Images
Advantages
Product Packaging & Shipping
Company Profile
FAQ
Q1: Which kind of software does your camera compatible with?
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 2 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer's design, logo,lable,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
|
Model |
NV20H conference camera |
|
Sensor |
1/2.8''SONY CMOS |
|
Effective pixel |
2.38 mega pixel |
|
Video signals |
1080p@60/50/30/25fps,720p@60/50/30/25fps |
|
Zoom |
20x optical zoom |
|
Lens |
f=5.5-110mm |
|
Aperture |
F1.6-3.5 |
|
Horizontal angle |
55.8°(W)-3.2°(T) |
|
Vertial angle |
32.2°(W)-1.8°(T) |
|
Diagonal angle |
61°(W)-3.64°(T) |
|
Video output |
USB,HDMI |
|
Video encoding format |
H.264, H.265, MJPG, YUY2 |
|
Video resolution |
1080P (1920 *1080) etc |
|
Siginal standard |
NTSC/PAL |
|
Preset position |
User can set up to 64 presets (IR remote 10 presets) |
|
Control terminal |
RS-232 (input only), RS-485, USB |
|
Shutter |
1/30s～1/10000s, auto |
|
Baud rate |
2400/4800/9600/38400bps |
|
Control protocol |
VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
|
USB protocol |
UVC1.1 |
|
Minimal Illumination |
0.1Lux |
|
SNR |
350° (±175°) 0.1°/s～100°/s |
|
Horizontal rotation |
≥50dB |
|
Vertical rotation |
180°(±90°)0.1°/s～80°s |
|
Power supply |
DC 12V/2A |
