telemedicine device 20x Zoom camera
Model TEVO-NV20A
20x optical zoom
Sleek and intelligent design
USB, HDMI, SDI 3video outputs
Crystal clear HD1080P image quality
Accurate, smooth and silent PTZ Movement
Preset: 9 via IR remote setting (256 via RS232)
Superior quality with Full Glass Lens Material
54.7 ° wide field of view with no video distortion
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved telemedicine device 20x zoom camera at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.
Telemedicine device 20x Zoom camera
Product parameters:
Product No. | TEVO-NV20A |
Image Sensor | 1/3 inch HD Color CMOS |
Effective pixel | 2.38 mega pixel(16:9) |
Horizontal Resolution | 1080P60/50/30/25, 1080i60/50, 720P60/50 |
Signal standard | NTSC/PAL |
Zoom | 20x optical zoom |
Minimum luminance | 0.5Lux at F2.0 |
Focal length | F=5.5mm(wide)-110(tele) |
Horizontal Angle | Near-end 54.7°～Far-end 3.3° |
Gain control | Auto |
Focus | Auto |
White balance | Auto |
SNR ratio | ≥50dB |
Shutter speed | 8 to 1/10000s (auto) |
Preset position | IR remote control supports 9 presets, PELCO Protocol supports 256 presets |
Pan/Tilt movement range | Pan: ±175°(max speed 80°/S), Tilt: -35°~﹢55°(max speed 60°/S) |
Control terminal | USB,RS-232, RS485 |
Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
Video output | USB, HDMI, SDI |
Video Compression Format | MJPG |
Noise Reduction | 2D/3D |
Work temperature | -10°C-~50°C |
Storage temperature | -20°C~60°C |
Baud rate | 38400/9600bps |
Decoder | Built-in |
Address set | 1~256 |
Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
Power supply | DC12V/ 2A |
Power consumption | 12 W |
Net weight/Gross weight | 1.5kg/2.85g |
Dimension(LXWXH) | 260*175*180 mm /296*255*218mm (before / after packing) |

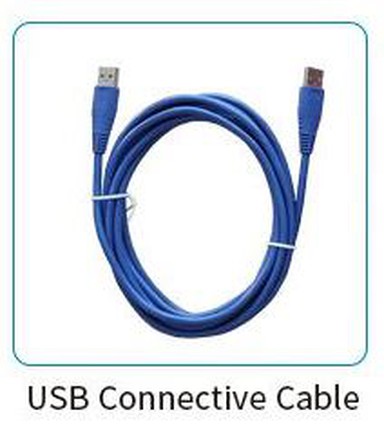

Accessories | DC 12V Power adaptor, IR remote control, Manual, USB2.0 cable, Ceiling brackets & screws. |
FAQ:
Q:What kind of camera should I use?
A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software.For meeting room spaces, we have video conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and boardrooms,and large auditorium spaces.You can check our service guide for more information on different meeting room systems.
Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.
Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.
Q:What is the Video Connector?
A:There are USB 2.0, USB3.0,HDMI,HD-SDI,DVI,YPBPR and CVBS Video output.
Q:How many time zoom?
A:Support fixed focus, 3X 10X, 20X, 30X optical zoom.
Q:Which kind of software compatible with this Camera?
A:It’s compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh, WebEx, easy meeting, Vidtel and working with Microsoft Lync Software,and ZOOM.US, SKYPE, VIDYO Etc.
