Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved ptz camera 20x zoom at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.
PTZ CAMERA 20X ZOOM
Paramaters
|
Product No. |
TEVO-UHD20N-NDI |
|
Image Sensor |
1/2.8 inch HD CMOS |
|
Effective pixel |
2.38 mega pixel(16:9) |
|
Horizontal Resolution |
1080P 60/50/30/25, 720P60/50/30/25 |
|
Signal standard |
NTSC/PAL |
|
Zoom |
20x optical zoom |
|
Focal length |
F=f=5.5-110mm F1.6～3.5 |
|
Horizontal Angle |
58.6°(W)-3.6°(T) |
|
Vertical angle |
54.7°(W)-3.3°(T) |
|
Diagonal angle |
60.2°(W)-3.7°(T) |
|
SNR ratio |
≥50dB |
|
Shutter speed |
auto/manu/ 1/1s～1/30,000s |
|

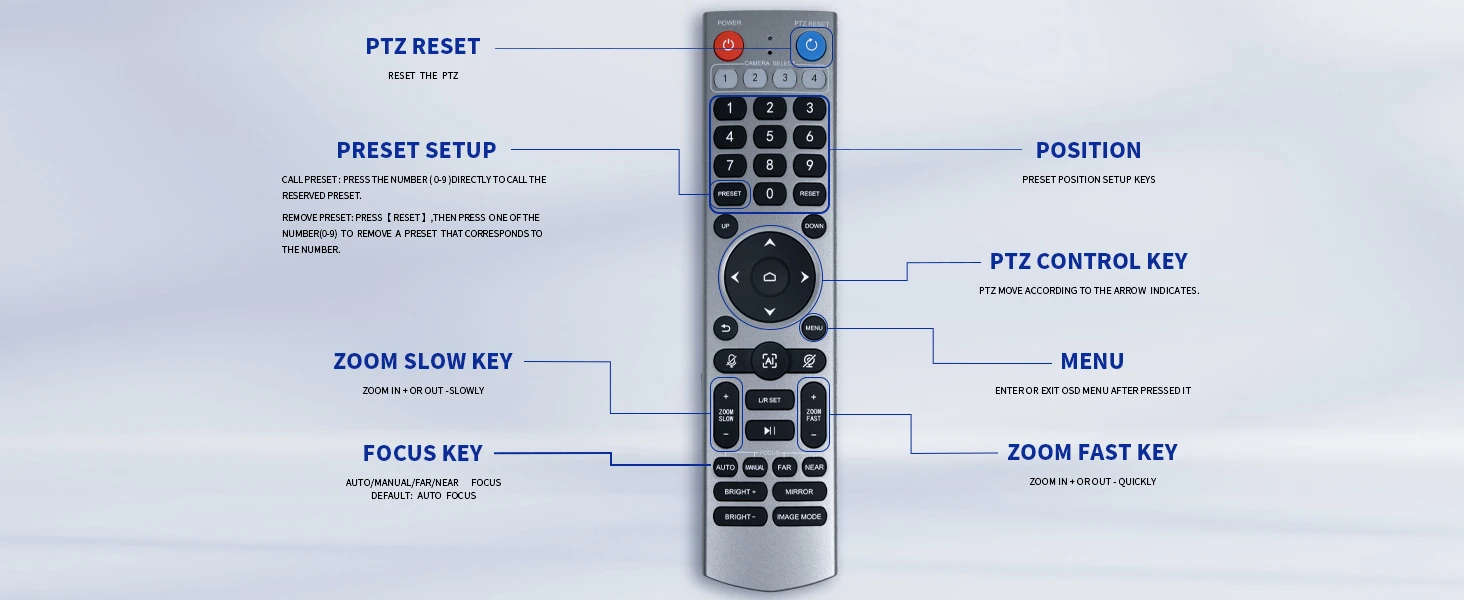

Preset position |
IR remote control supports 10 presets |
|
Pan/Tilt movement range |
Pan: 350°(±175°)0.1°/s～100°/s, Tilt: 180°(±90°)0.1°/s～80°s |
|
Control terminal |
RS-232, RS-485 |
|
Control Protocol |
Onvif, VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
|
Video output |
RJ45, USB, HDMI, SDI |
|
Noise Reduction |
2D/3D |
|
Work temperature |
0°C~50°C |
|
Work humidity |
0~95% RH |
|
Baud rate |
9600/38400bps |
|
Minimal Illumination |
0.01 lux(F1.5 AGCON color) 0.001 lux(F1.5, AGCON Black & White) |
|

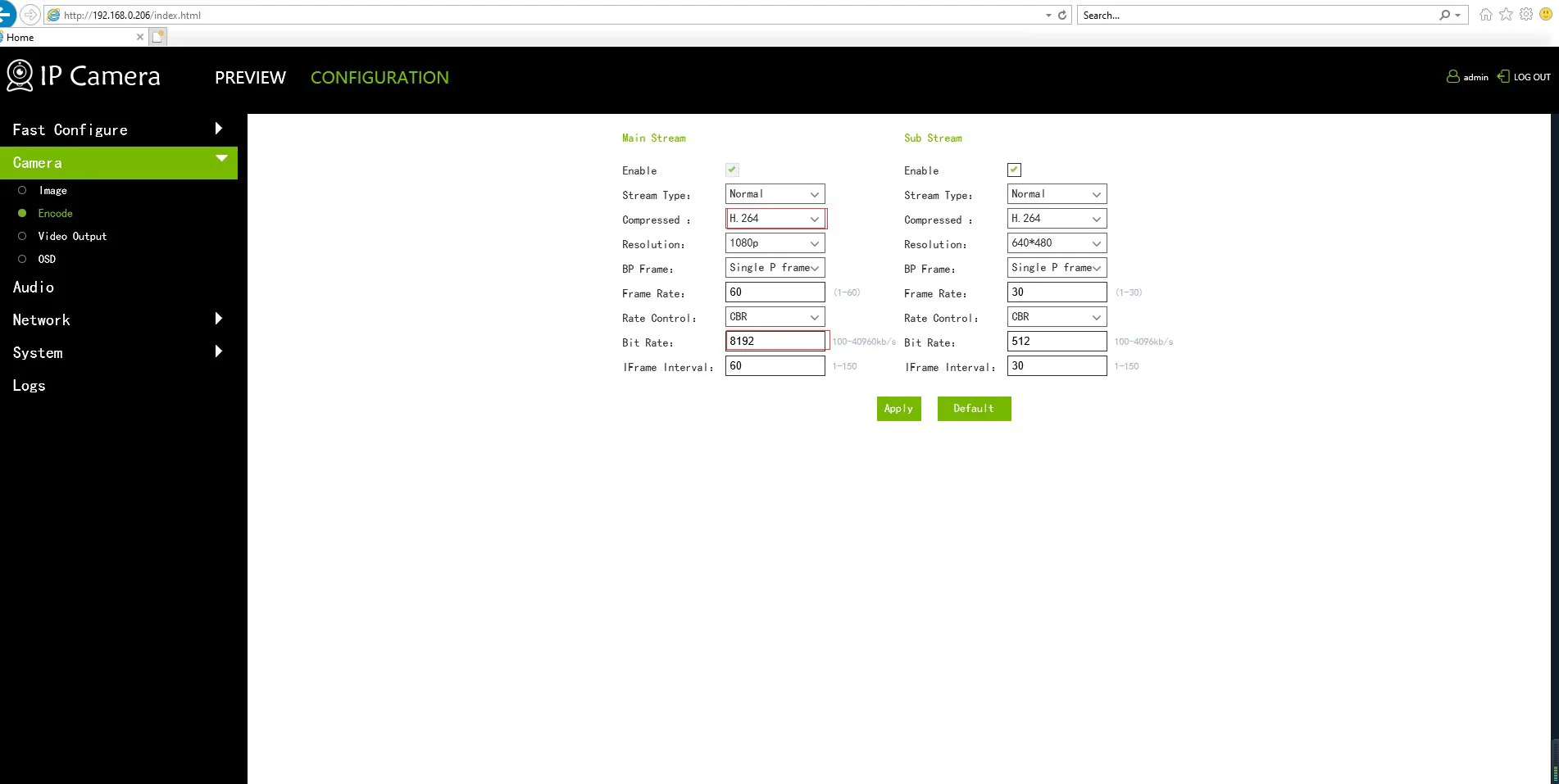

Video encoding format |
MJPEG/YUY2/H.264/H.265 |
|
Installation |
Support desktop, Tripod, Wall mount and Ceiling mount |
|
Power supply |
DC12 V/ 2A |
|
Power consumption |
12 W |
|
Net weight/Gross weight |
1.3kg/2.05kg(net / gross weight) |
|
Dimension(LXWXH) |
260*175*180 mm /296*225*218mm(before / after packing) |
|
Accessories |
DC 12V Power adaptor, IR remote control, Manual, USB cable, Wall Mount brackets & screws. |
