TENVEO HDMI 20X Audio Video Conference System
* 20x optical zoom
* HDMI, USB3.0,RJ45,SDI
* 8.29 megapixels for VX20M-4K
* AI-powered auto tracking
* Delivers true 4K clarity and 1920*1080 image quality
* RTSP、RTMP、VISCA over IP、ONVIF、SRT、NDI|HX2(Optional)
* Windows 10, Windows 11or higher; Android, Mac OS™ 10.10 or higher, Linux
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description

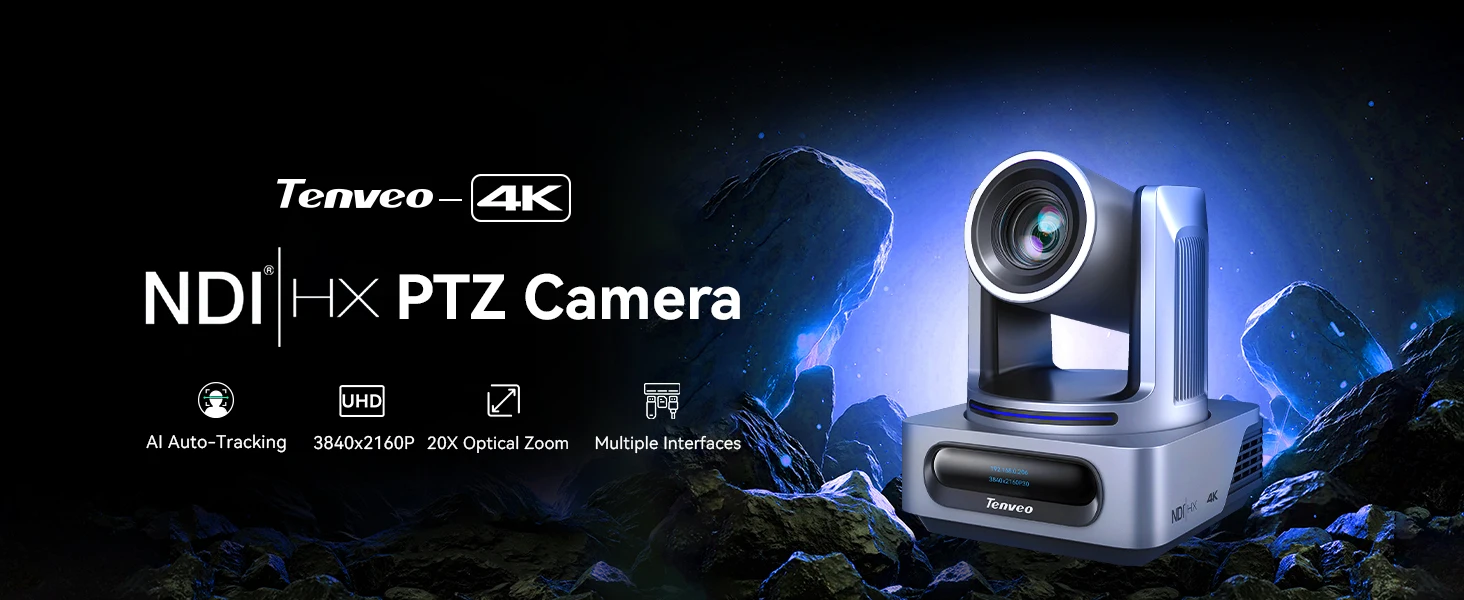

TEVO-VX20M-4K 4K PTZ live streaming camera
TEVO-VX20M-4K ptz live streaming camera is a professional-grade UHD PTZ camera featuring Sony sensor and 20x optical zoom for crystal-clear imaging in any environment. With advanced Al auto-tracking that maintains perfect framing of presenters, plus smooth PTZ operation, comprehensive l/O options, and multi-protocol support, the 4k camera integrates effortlessly with your workflow. This 4k ptz live streaming camera is perfect for education, meetings, live streaming.and broadcasting, and offers high-performance video, intelligent automation, and broad compatibility.
Detailed Images
True 4k 30fps cinema-quality imaging
The VX20M-4K ptz live streaming features a Sony 1/2.8" CMOS sensor with 8.29MP resolution, providing true 4K clarity,
4k NDI auto tracking ptz camera
With 20x optical zoom, these cameras excel in large classrooms, conference halls, and live events by bringing distant subjects into clear focus..

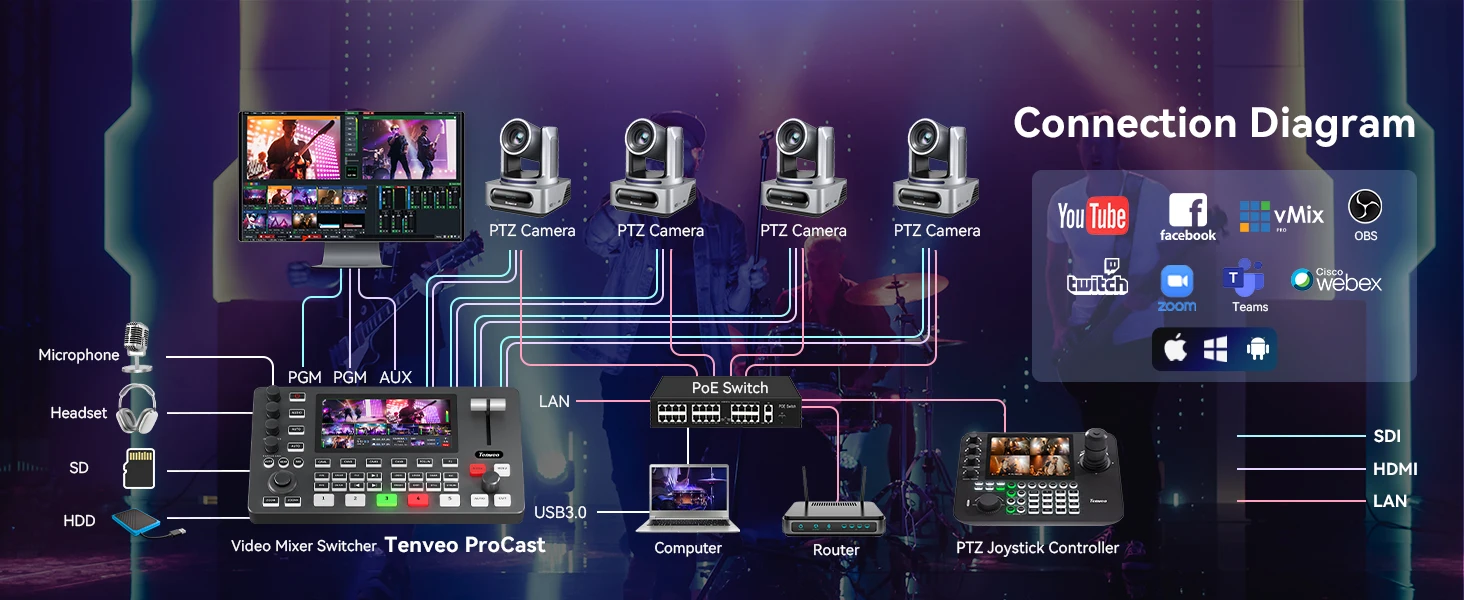

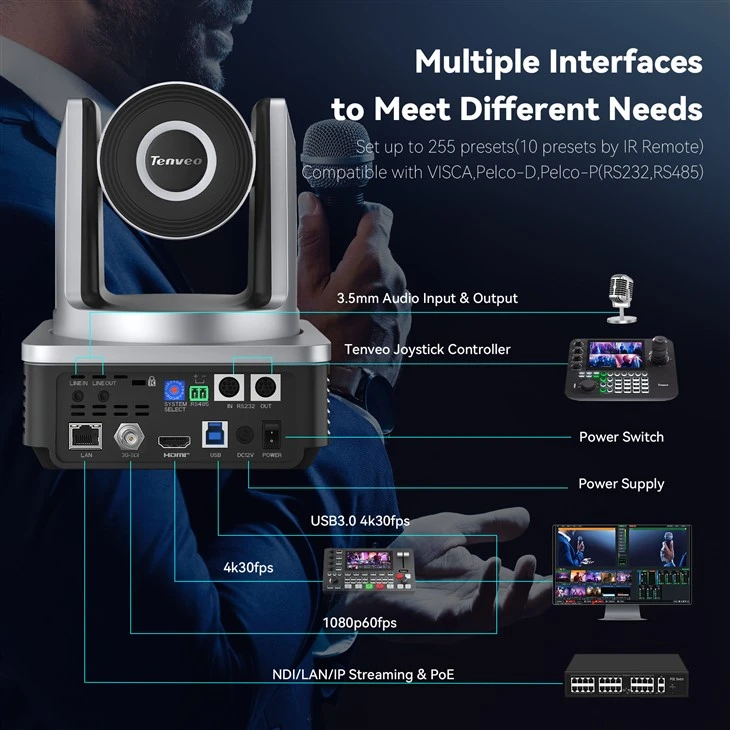

USB/HDMI/SDI/RJ45 video outputs
TEVO-VX2-M-4K PTZ live streaming camera supports a comprehensive range of interfaces and streaming protocols, making integration into existing systems effortless.--Video Outputs: HDM, USB 3.0, SDI, RJ45(Support PoE+, and NDI)--Audio: Line in/out--Streaming Protocols: RTSP, RTMP, SRT, NDI®|HX2--Control Interfaces: RS232(input/output), RS485,USB3.0 (UVC1.1), RJ45--Control Protocols: VISCA, Pelco-D/P, ONVIF, VISCA over IP, NDI Whether for live streaming, remote collaboration, or system integration.
Broad Software & System Compatibility
Engineered for modern workflows, VX20M-4K ptz livestreaming camera supports Windows 10/11, mac OS 10.10+, Linux, and Android systems with UVC plug-and-play compatibility. From video conferencing platforms to live broadcasting software, this 20x optical zoom Al Tracking ptz camera integrates effort lessly into your preferred setup-no additional drivers needed.
Technical Specifications
|
Model No.
|
VX12M-4K
|
VX20M-4K
|
|
Image Sensor
|
Sony 1/2.8" CMOS
|
|
|
Effective Pixels
|
8.29MP
|
|
|
Optical Zoom
|
12x optical zoom
|
20x optical zoom
|
|
Lens
|
f=3.4mm~40.9mm
|
f=4.95mm~99mm
|
|
Aperture
|
F1.8-F3.0
|
F1.7-F3.7
|
|
Horizontal Angle
|
67.5°~7.6°
|
51.9°~3.0°
|
|
Vertical Angle
|
40.18°~4.34°
|
39.7°~2.2°
|
|
Diagonal Angle
|
75.4°～8.76°
|
63.1°～3.7°
|
|
Video Format
|
HDMI：4KP@30/25fps,2KP@60,1080P@60/59.94/50/30/29.97/25fps,
1280*720P@60/59.94/50/30 3G-SDI：1080P@60/59.94/50/30/29.97/25fps,720P@60/59.94/50 USB3.0： H.264：max to 2160P@30fps H.265：max to 2160P@30fps MJPG：max to 2160P@30fps NV12：max to 896P@30fps YUY2：max to 896P@30fps |
|
|
Video Encoding Format
|
H.264, H.265, MJPEG, YUY2
|
|
|
Backlight Compensation
|
Support
|
|
|
AI Support
|
Yes
|
|
|
AI Mode
|
Auto Framing/Presenter Tracking
|
|
|
SNR
|
≥50dB
|
|
|
Focus
|
Auto / Manual
|
|
|
Digital Noise Reduction
|
2D & 3D Noise Reduction
|
|
|
Exposure
|
Auto / Manual
|
|
|
I / O Interface
|
||
|
Video Interfaces
|
HDMI, USB3.0,RJ45,SDI
|
|
|
LAN
|
10M/100M adaptive Ethernet port; Support POE IEEE802.3af
|
|
|
Video Stream
|
Main Stream, Sub Stream
|
|
|
Main Stream Resolution
|
1920x1080
|
|
|
Sub Stream Resolution
|
1280x720
|
|
|
Network Protocol
|
RTSP,RTMP,VISCA over IP,ONVIF,SRT,NDI|HX2(Optional)
|
|
|
Control Protocol
|
VISCA/Pelco-D/Pelco-P; Baud Rate: 2400/4800/9600/38400
|
|
|
Control Interface
|
RS232(input/output), RS485,USB3.0 (UVC1.1),RJ45
|
|
|
Input/Output Interface
|
||
|
HD Output
|
1xHDMI
1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard |
|
|
LAN
|
1xRJ45:10M/100M Ethernet Interface ;Support POE IEEE802.3af
|
|
|
Audio Interface
|
1-ch: 3.5mm Audio Interface, Line In
1-ch: 3.5mm Audio Interface, Line Out |
|
|
USB
|
1xUSB3.0: Type B female jack
|
|
|
SDI Interface
|
1x3G-SDI
|
|
|
Communication Interface
|
1xRS232 In: 8pin Min DIN, Protocol: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Protocol: VISCA network use only 1xRS485: 2pin Phoenix Port, Protocol: VISCA/Pelco-D/Pelco-P |
|
|
Power Jack
|
JEITA type (DC IN 12V)
|
|
|
PTZ Parameter
|
||
|
Horizontal Rotation
|
350° (±175°) 0.1°/s～100°/s
|
|
|
Vertical Rotation
|
180° (±90°) 0.1°/s～80°/s
|
|
|
Preset Number
|
User can set up to 255 presets (10 presets by IR remote)
|
|
|
Status Indication
|
||
|

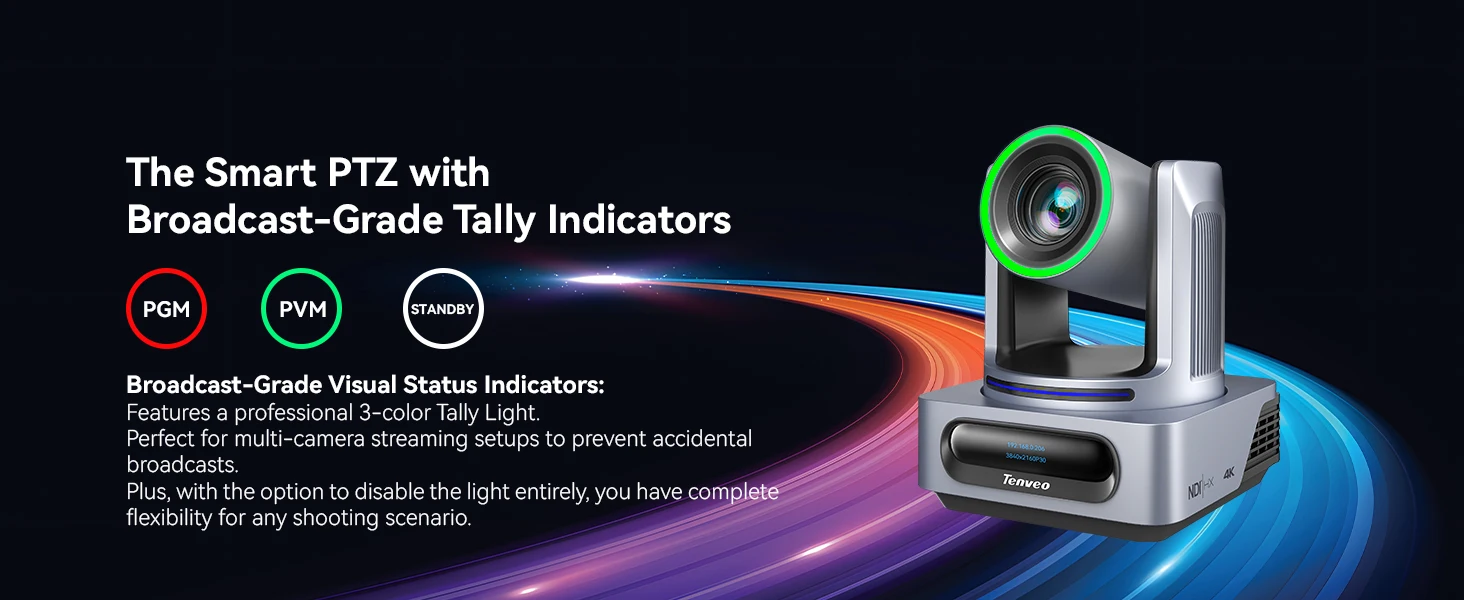

Tally Lamp
|
PVM state: Green light stays on; PGM state: Red light stays on;Other Modes:White light stays on
|
|
|
Status Indicator
|
Indicates the device's operating status
|
|
|
IP Display
|
Displays the device's IP address, HDMI pull - stream resolution and frame rate
|
|
|
Operation Systems
|
Windows 10, Windows 11or higher; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.)
|
|
