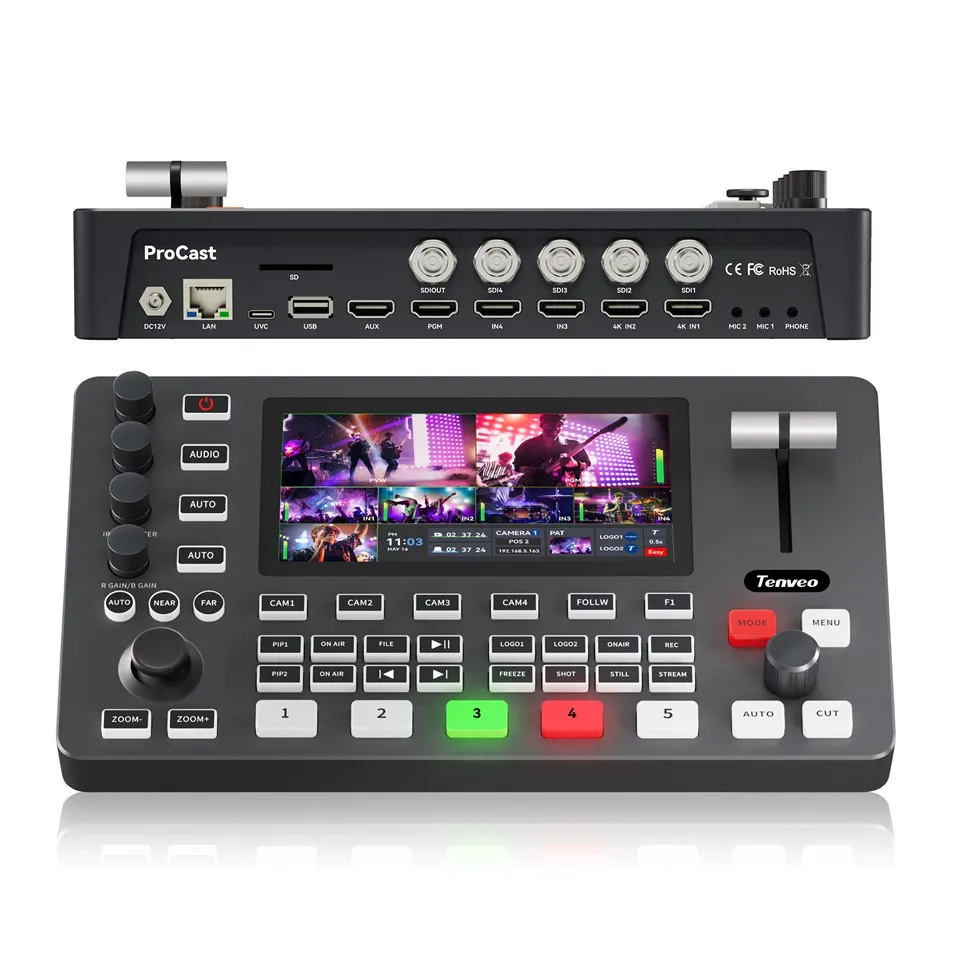

Tenveo 4K HDMI Video Mixer Switcher 5.5 Inch FHD LCD Screen 4-Channel HDMI Live Streaming Switcher
* The PC500 is a professional live streaming switcher with a 5.5-inch FHD screen.
* Inputs: Supports 4-channnel flexible inputs—4 SDI and 4 HDMI (the first two HDMI inputs support HDMI2.0 with 4K).
* Outputs: Features two HDMI outputs and one SDI output. All outputs can be customized as input channel/PST/PGM/MV.
* Audio: Supports two external audio inputs. You can monitor the mixed audio output or a single audio channel in real time.
* Streaming: When connect device to PC by UVC port，the device can be detected as webcam for stream.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
SZ Tenveo Video Technology Co., Ltd. is known as one of the leading manufacturers and suppliers in China, we now warmly welcome you to wholesale CE approved tenveo 4k hdmi video mixer switcher 5.5 inch fhd lcd screen 4-channel hdmi live streaming switcher at low price from our factory. With the aid of advanced equipment and technology, we can assure you the high quality and good performance of our equipment. Contact us for pricelist and OEM&ODM service.
TENVEO PC5OO 4K All-in-One Video Mixer Switcher
Tenveo PC500 - a professional live streaming Video Mixer Switcher, Integrates video encoding, multi-channel switching, PTZ/NDI Camera control, multi-camera Live streaming, real-time monitoring and USB recording. Designed and produced for professional Audio Video System Live Streaming /Live Production /Live Broadcasting.

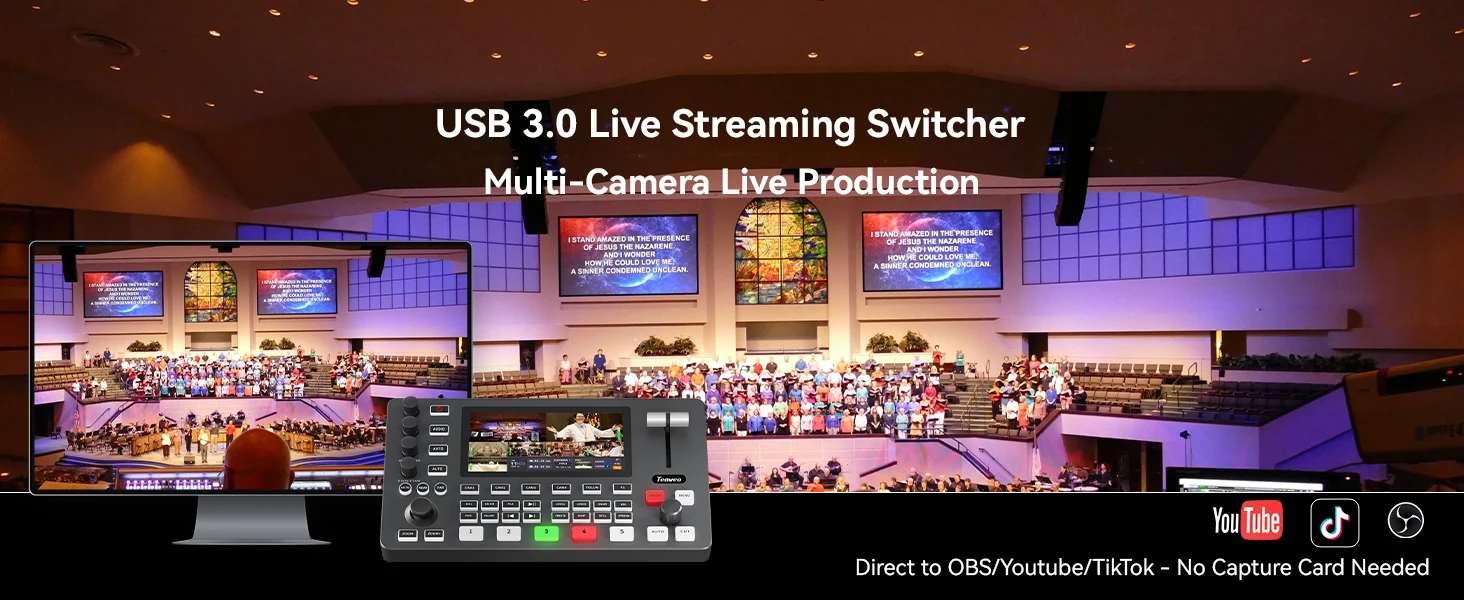

Suitable for Church Worship Live Services, Studio Live, Stage Shows, Product Launch, Sport Events, Government Activities, Online Training, University, Factory live, Classroom, High-end Summit, Large Conference, Weddings, Podcasts, etc.
Major Features:

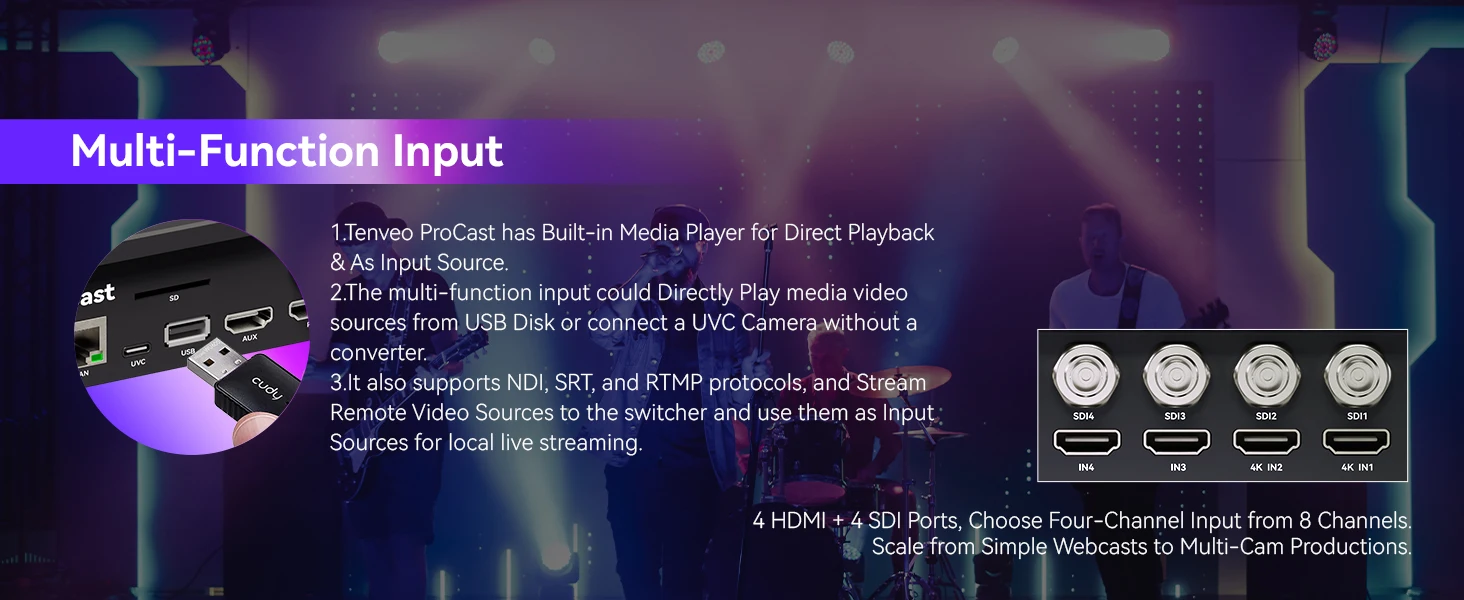

*Integrated 8-choose-4 channel input from 4*SDI & 4*HDMI ;
*Supports USB-A USB 3.0 lossless capture for more authentic image reproduction;
*Supports 4K input, allowing flexible integration of multiple video sources;
*Supports NDI input, low-latency video over a single network cable;
*Supports UVC cameras and remote camera input for versatile composite input;
*Built-in media player; recorded videos can be played directly onboard and used as an input source;
*Supports PGM output and MV output with variable channels;
*Supports onboard recording to USB flash drives and portable HDDs;
*Supports screen rotation (landscape/portrait) to adapt to various scenarios;
*Built-in web server, supports control via web browser on any platform *Connect via Ethernet, input stream keys for dual-stream pushing.
Technical Specifications
|
Screen
|
5.5 inch
|
||
|
Resolution
|
1920*1080
|
||
|
Decoding Capability
|
Supports H.264 Max; Supports H.264 1080p60fps
|
||
|
Protocols
|
SRT, RTMP, RTSP, VISCA, NDI
|
||
|
Features
|
Integrated 8-choose-4 channel input from 4*SDI & 4*HDMI
Supports USB-A USB 3.0 lossless capture for more authentic image reproduction Supports 4K input, allowing flexible integration of multiple video sources Supports NDI input, low-latency video over a single network cable Supports UVC cameras and remote camera input for versatile composite input Built-in media player; recorded videos can be played directly onboard and used as an input source Supports PGM output and MV output with variable channels Supports onboard recording to USB flash drives and portable HDDs Supports screen rotation (landscape/portrait) to adapt to various scenarios Built-in web server, supports control via web browser on any platform Connect via Ethernet, input stream keys for dual-stream pushing |
||
|
System
|
language settings; network upgrade; static MAC address
|
||
|

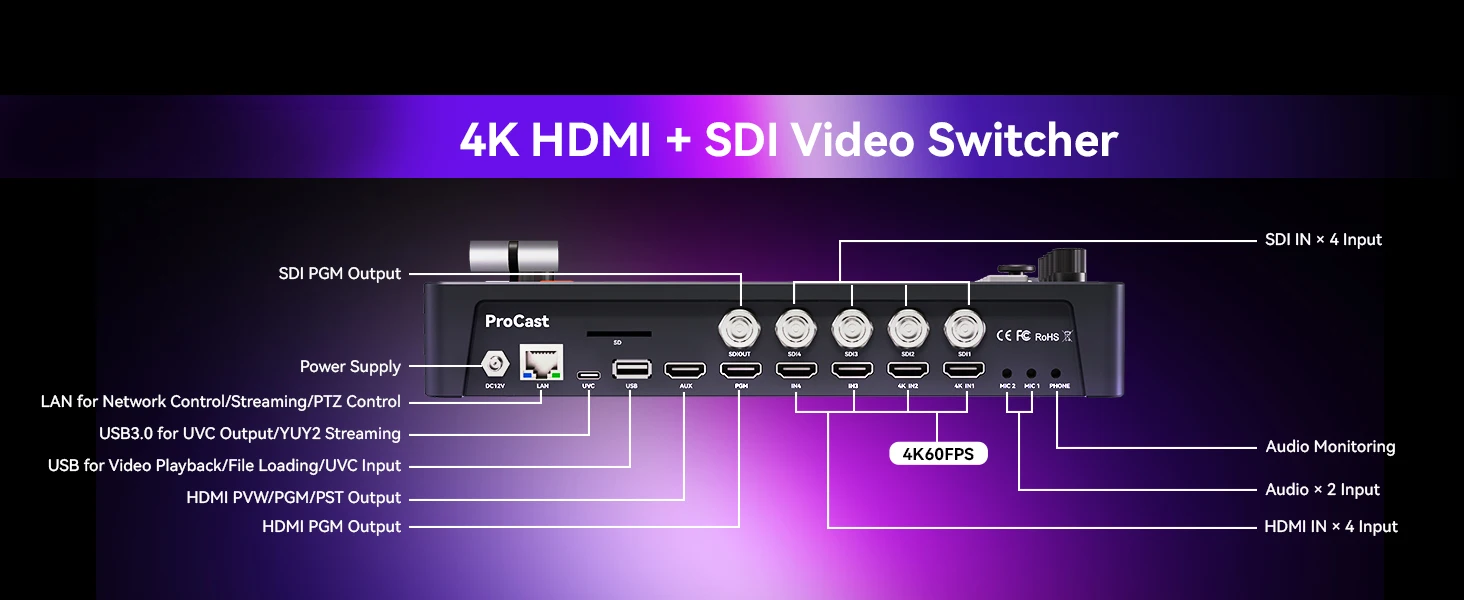

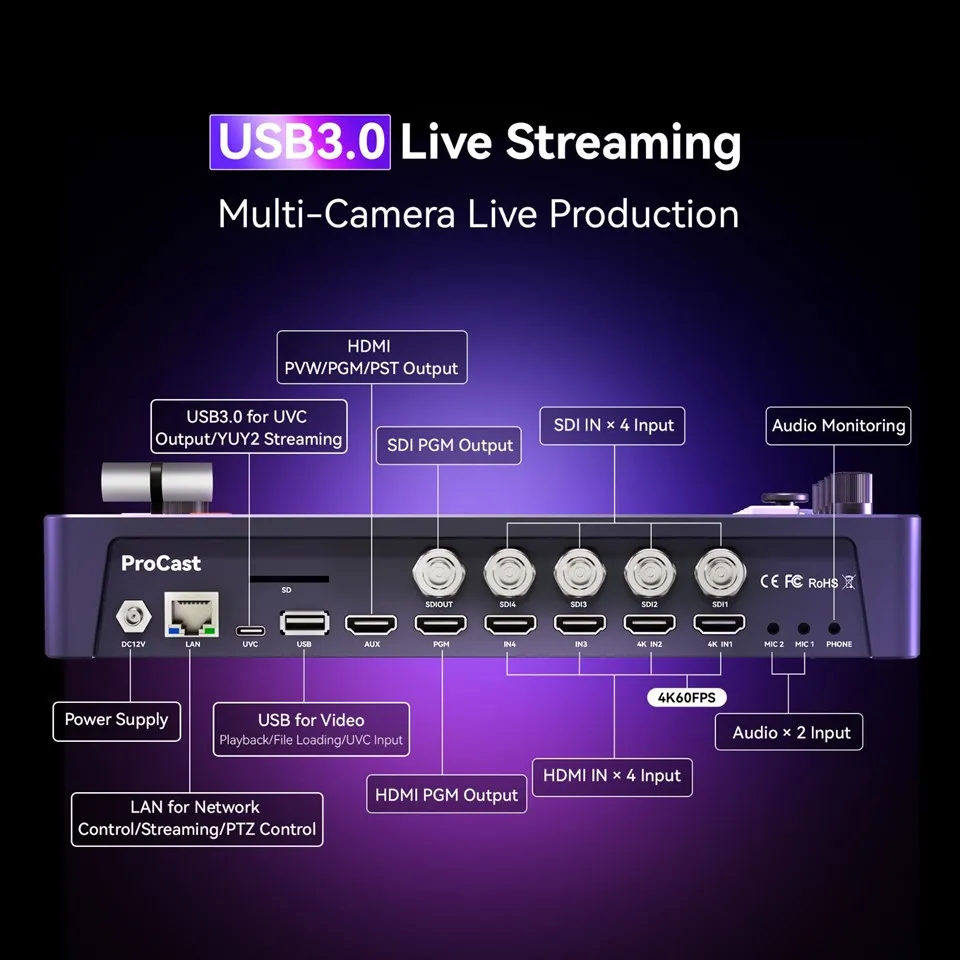

I/O Configuration
|
Input
|
3G-SDI*4
|
SDI 1080P Input Interface
|
|
HDMI 2.0*2
|
HDMI 4K Input Interface
|
||
|
HDMI 1.3*2
|
HDMI 1080P Input Interface
|
||
|
USB 2.0*1(USB Type-A)
|
Video Playback/Image Loading/UVC Input
|
||
|
Output
|
3G-SDI*1
|
PGM Output
|
|
|
HDMI 1.3*1
|
PGM Output
|
||
|
HDMI 1.3*1
|
PGM/MV Multiplexed Output
|
||
|
USB 3.0*1(USB Type-C)
|
UVC Output Interface
|
||
|
Audio
|
MIC IN 2*3.5mm Audio Interface
|
Compatible with MIC/LINE Stereo Input
|
|
|
PHONES 1*3.5mm Audio Interface
|
Monitor Output
|
||
|
Control
|
LAN*1
|
Network Control/Network Streaming
PTZ Camera Control |
|
|
Input Resolution
|
HDMI
|
720p@50/60fps | 1080i@50fps | 1080p@24/30/50/60fps
1024*768@60fps | 1280*768@60fps| 1280*800@60fps 1280*1024@60fps| 1360*768@60fps| 1366*768@60fps 1440*900@60fps | 1600*1050@60fps | 1680*1050@60fps 1920*1080@23.98/24/25/29.97/30/50/59.94/60fps (IN1/IN2)3840*2160@30/50/60fps |
|
|
Output Resolution
|
HDMI
|
1080P60FPS/24/25/30/48/50
|
|
|
USB 3.0
|
1080P60FPS/24/25/30/48/50
|
||
|

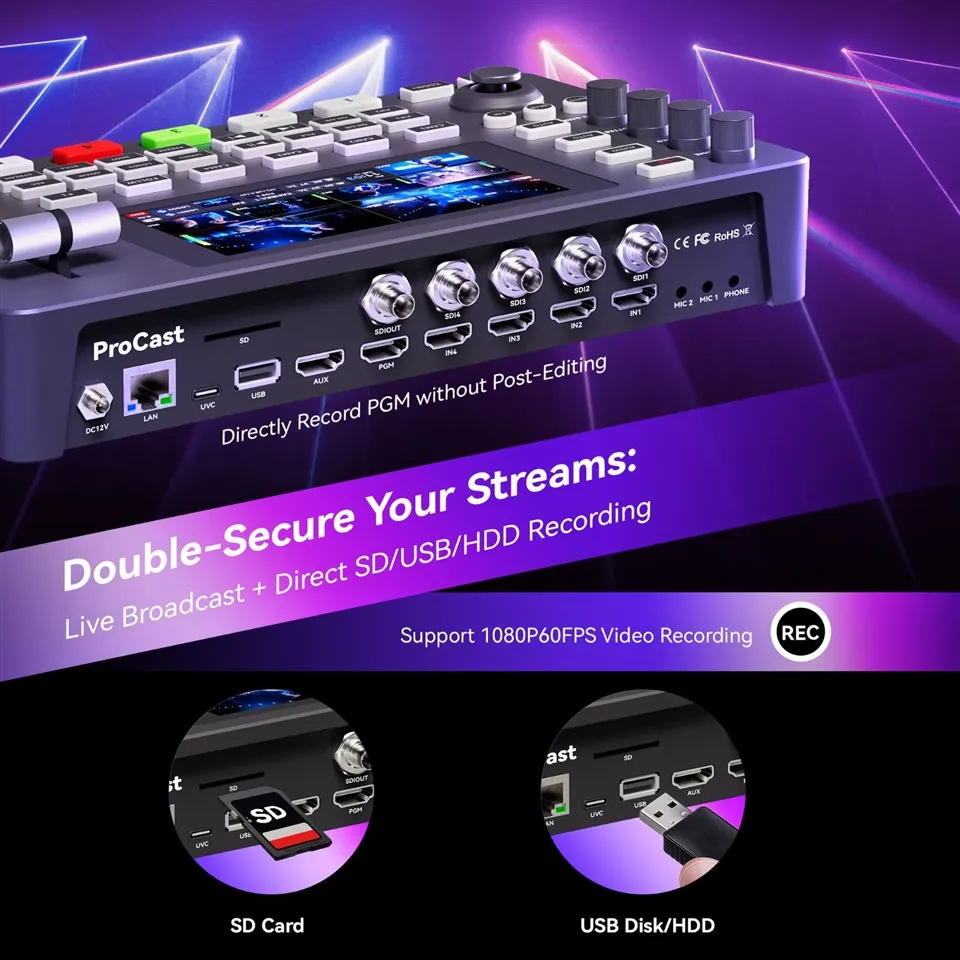

Storage
|
SD Card Slot
|
SD Card Recording
|
|
|
USB Port
|
USB Drive Recording
|
||
|
Performance
|
Video Sampling
|
YUV 4:4:4
|
|
|
System Latency
|
<3 Frames
|
||
|
Audio Delay
|
0-500ms(0-30/25 frames)
|
||
